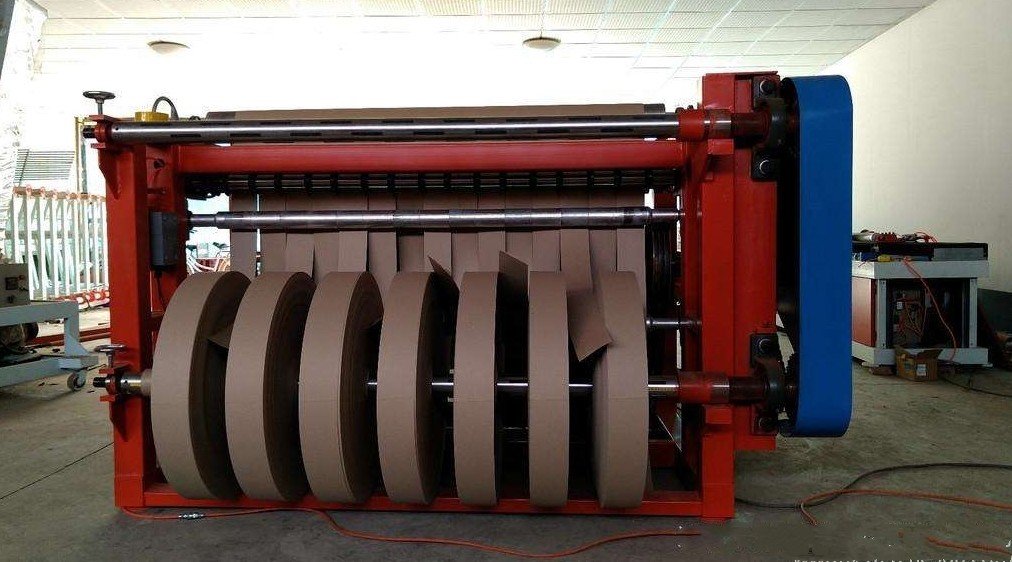

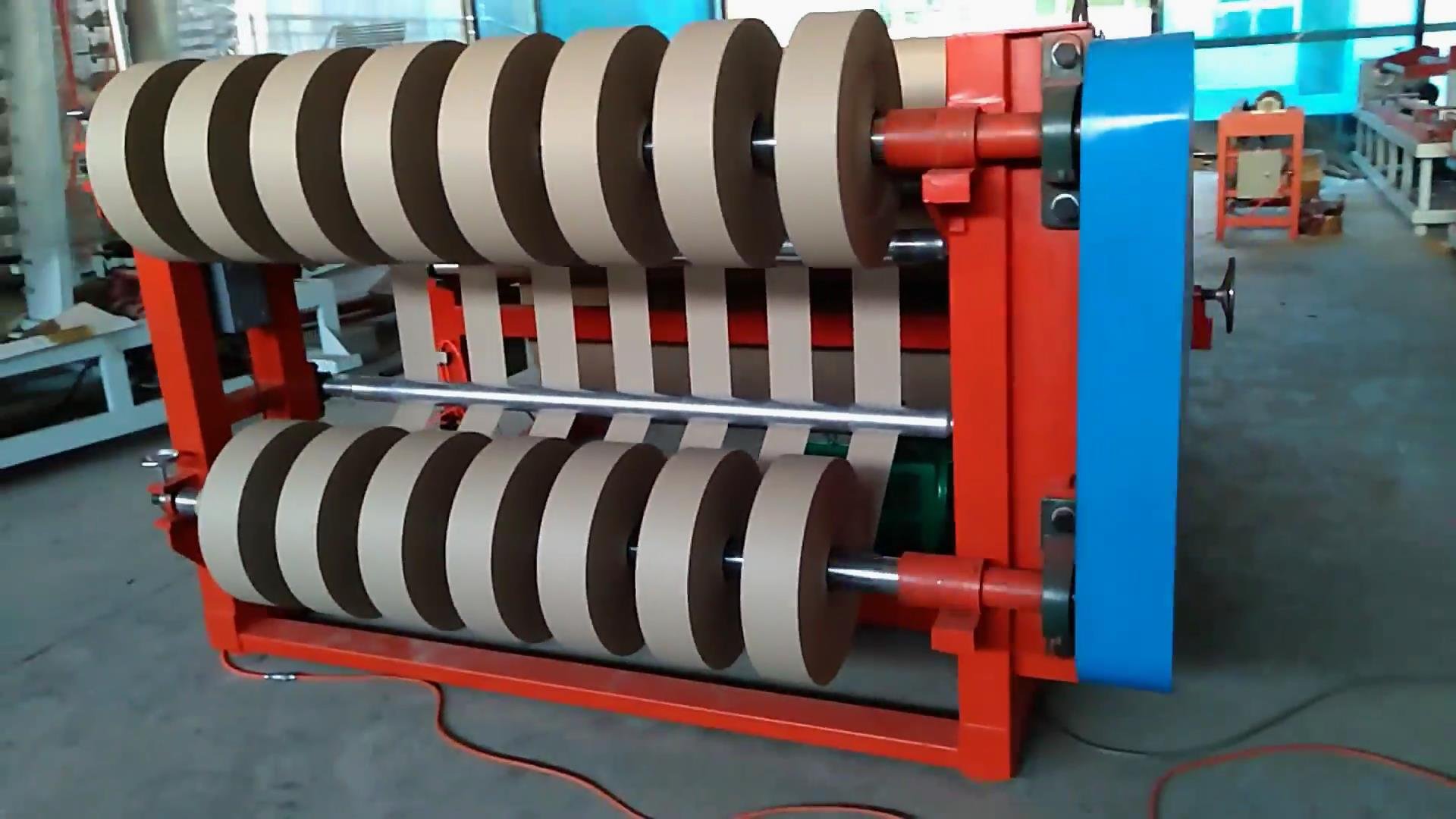

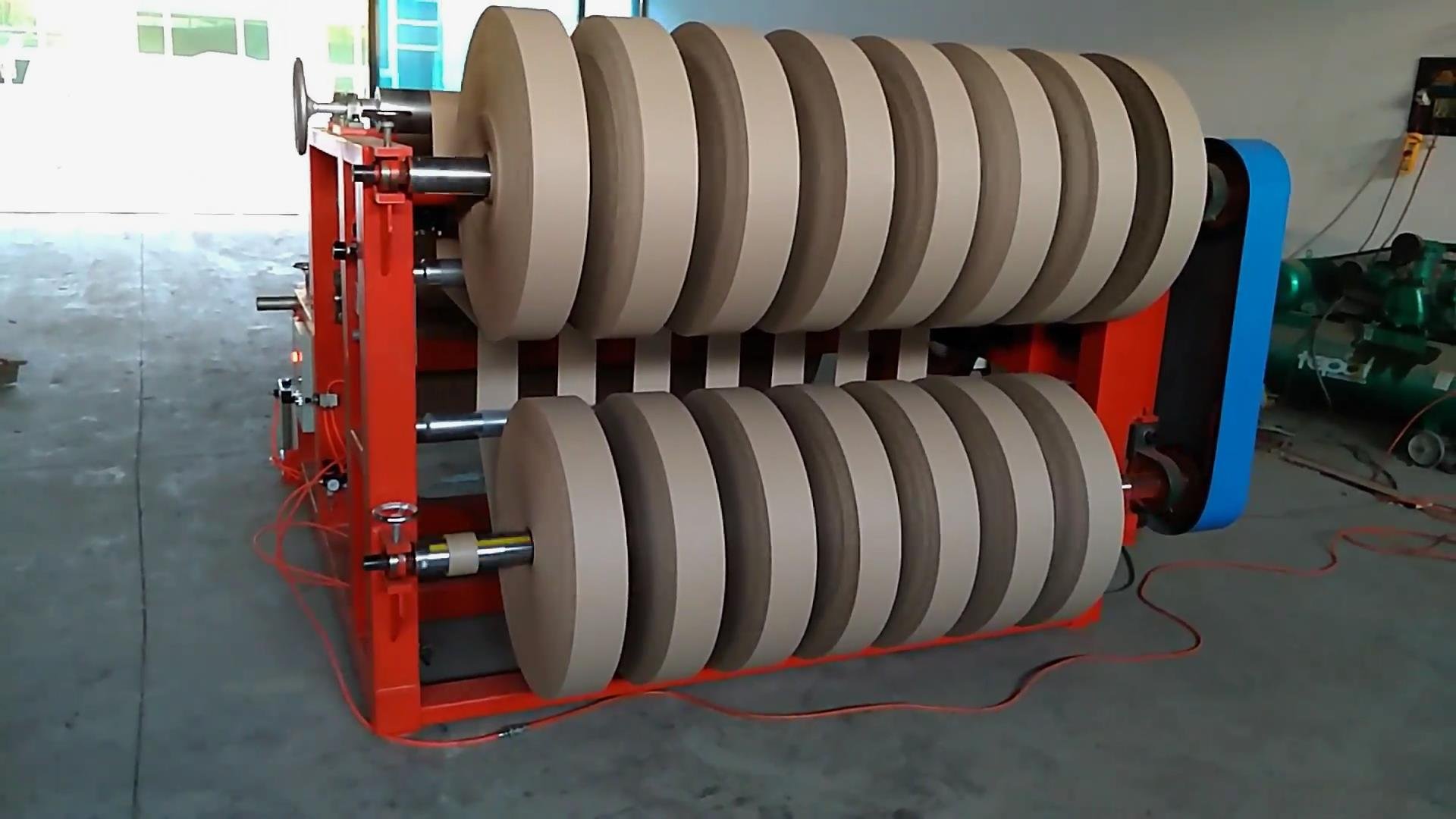

Paper roll to roll slitting rewinding machine
paper roll to roll slitter rewinder machine
1600C kraft paper slitting rewinding machine
■ Usage
Suitable for all kinds of kraft paper slitter rewinder .Tea paperboard,grass paperboard,calico art pape
■Feature
1、A pair of knives cutting
2、Plate and smooth on the both sides of the paper strap after cutting
3、Non-raw edge of paper trap and non paper coiling solid structure
4、Manual rectify
5、High output can offer three coiling tube machine to use
6、Mold steel armor plate structure,fin precision.
1600A paper slitter main specification and equipment
Machine Parameter | |
Jumbo roll width | 40-1600mm |
Jumbo roll max unwind width | 1600mm |
Finish roll max diameter | 800mm |
Max slitting speed | 300m/min |
Slitting rang | 40-700g |
Winding way | Air pressure stalk involution |
Number of blades | 25sets |
Paper loading way | pneumatic |
Speed adjust | electromagnetic |
Power input | 380V3phare4wire |
Machine Size
Mainframe（L*W*H） | 2400*2300*1500mm |
Total weight | About 1300kg |
Driving System
main motor | 4KW |
Moving speed | 1400r/min |
Adjust error | Manual |
Rewinding decelerate | Pully and sprokets |
Tension adjust | Manual gore the spring friction plate |
Drving way | Chain and belt |
Bearing | wanxiang |
Control System
Driving components | CHNT |
Signal components | Speed table |
