Spiral Paper Tube Core Forming Winding Machine

ID 60MM TWO-HEAD MULTI-KNIFE PAPER CORE MAKING MACHINE-YIDAFA MACHINERY

Spiral Paper Tube Core Forming Winding Machine is mainly used for making small diameter and short length paper cores,such as plastic film cores,electrionic fireworks cores and wrapping paper cans.

Number of paper layers:2~7

Paper tube diameter:15~76mm.

The thickness of paper tube :1~5mm.

Mini paper tube cutting lengh:90mm

Main power:7.4kw.

Feature

1. Cheaper price, high popularity, high performance.

2. Adopted PLC logic control system.

3. Main motor is adopt vector type of high torque inverter for speed regulate

4. Positioning length by photo electricity with auto speed changing function, in order to meet high cutting precision.

5. Modern electric layout designing for easy and science using, maintaining and repairing.

6. There is a remote controller for easy operating（to stop or slow down the machine when lacked paper）

7. Low noise driving designing.

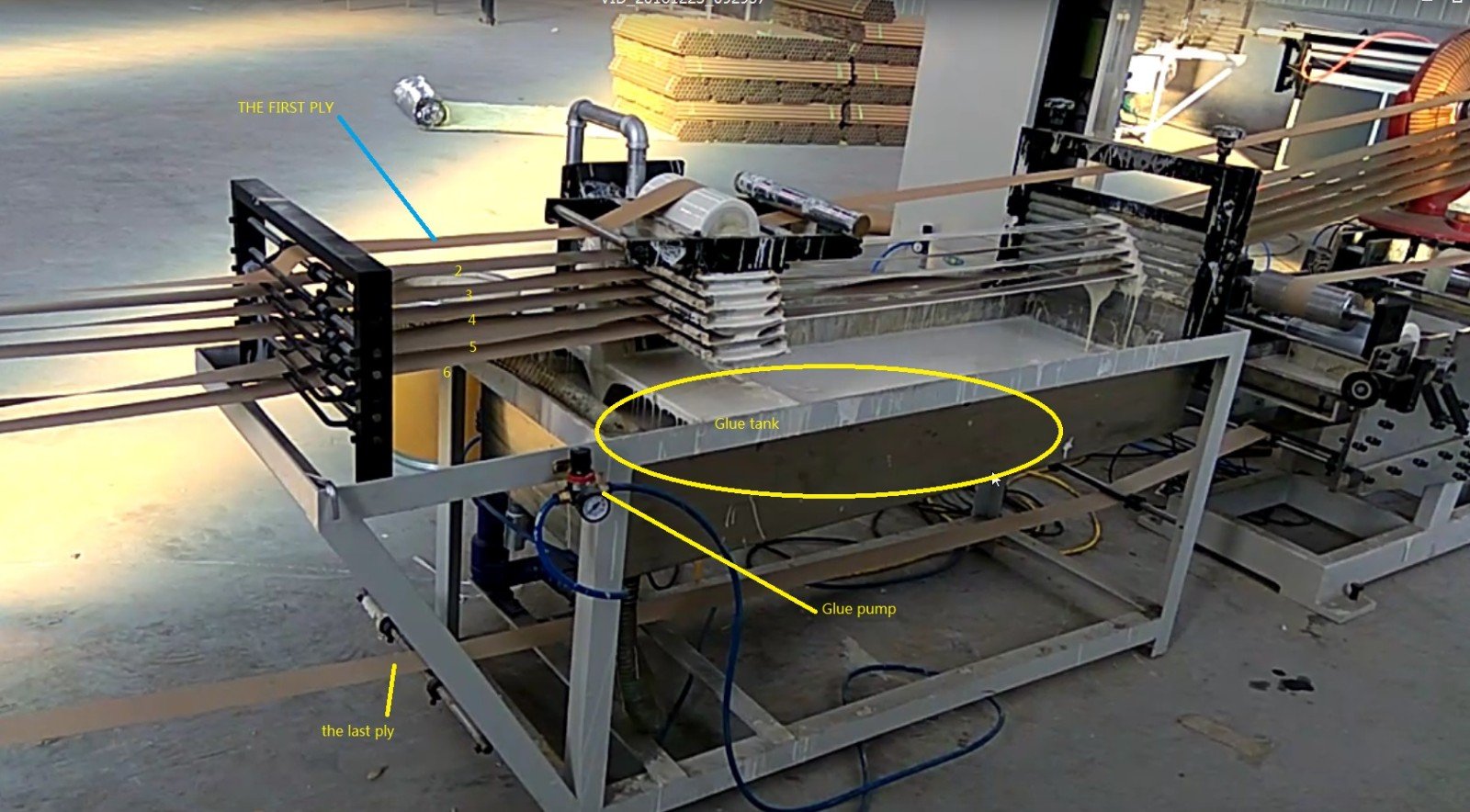

8. Adopt double size gluing and independent stainless steel gluing box, with imported silicone tube

Machine Parameter

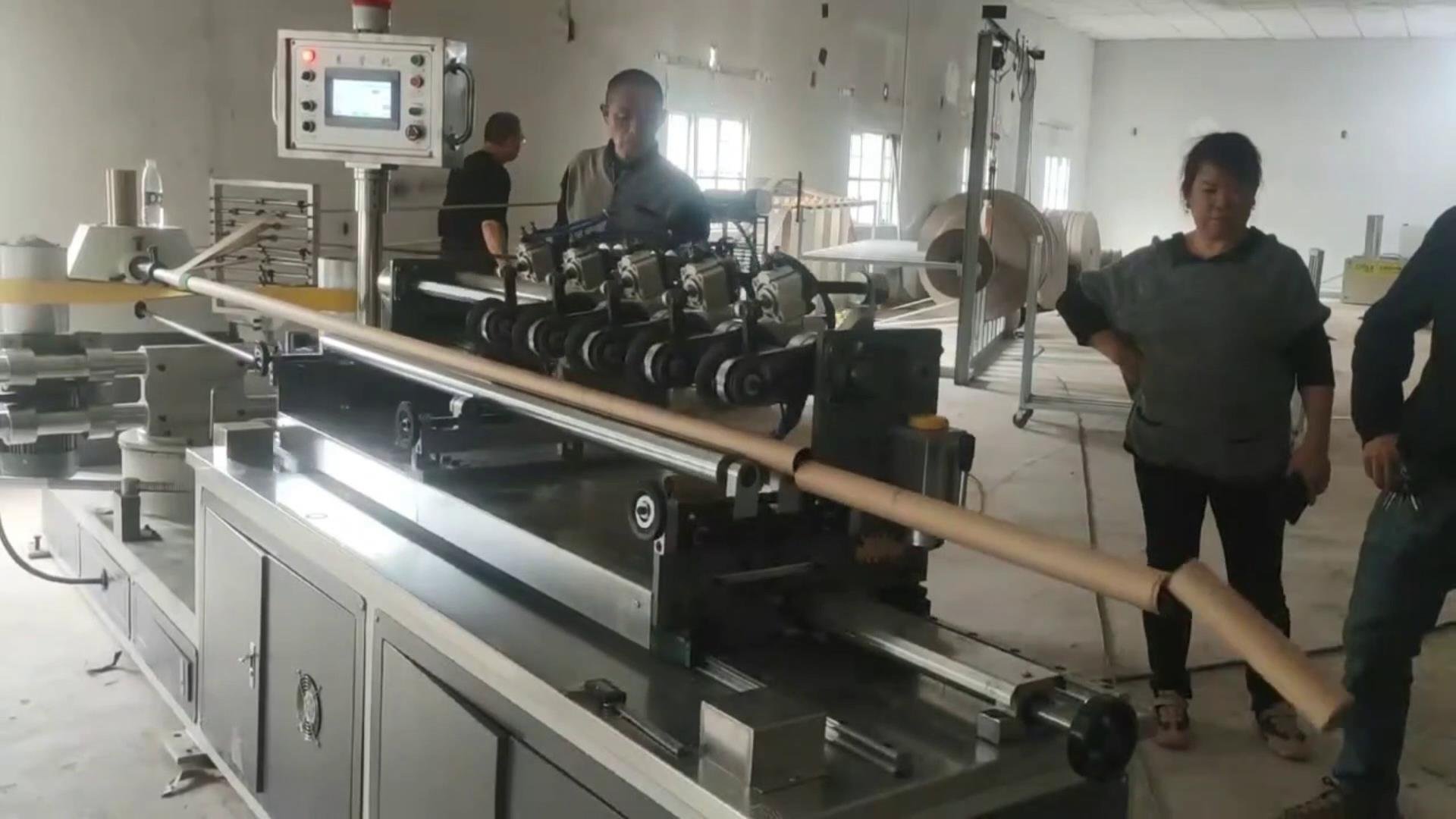

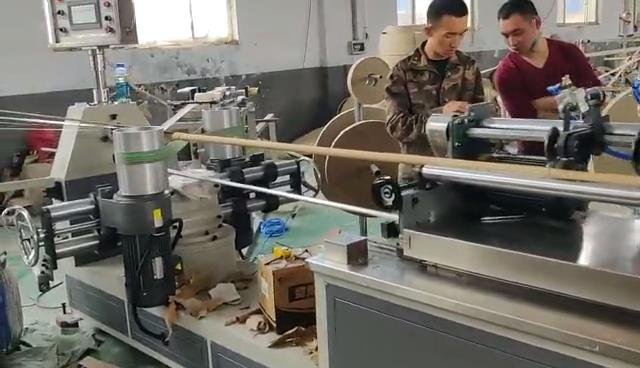

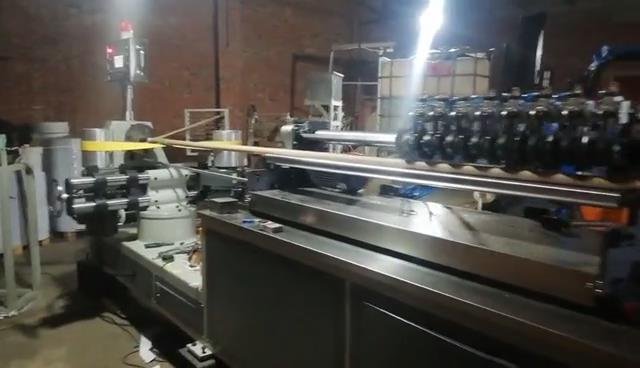

Details Picture
