The process flows of toilet paper: Waste paper or wood pulp--high concentration hydra-pulper--high frequency vibrating screen--pulp pump--hydra-screen -- bleacher -- propeller-- pulp pump -- double disc pulp refiner-- pulp pump-- centrifugal screen -- pulp pump -- sand remover-- 1880 type paper machine -- full-automatic rewinding &perforating machine -- band saw paper cutter -- sealing machine -- marketing

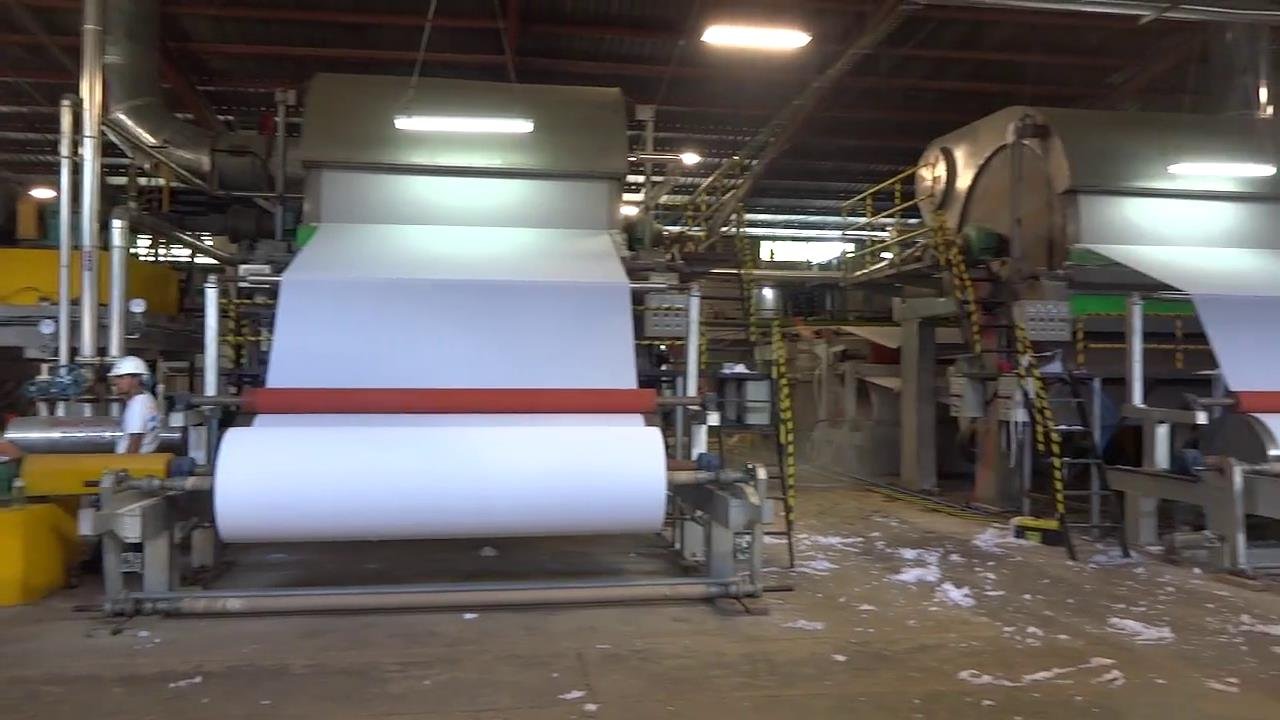

Small Waste Scrap Paper Recycle Machine
1.Product Description
I. Technical parameters:
1. Output paper: tissue paper
2. Raw material:waste paper
3. Capacity: 5 tons per day
4. Paper width: 1200mm
5. Paper weight: 15-35 g/m2
6. Working speed: 50-90m/min
7. Rail gauge: 1800mm
8. Drive way: AC frequency converter speed adjusting, section drive.
II. Structure of main part:
1. Cylinder section:stainless steel cylinder mold 1set, couch roll 1set,coated by rubber.
2. Dryer section: alloy dryer can 1set, touch roll 1 set, coated by rubber,dryer can is equipped with double layer exhaust hood.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
Paper making equipment and pulping process flows
2.Product Parameter
Ш All Equipments:
| No. | Item | Qty(set) | |
| 1 | 1880 mm tissue paper making machine | 1 | |
| 2 | Dryer exhaust hood | 1 | |
| 3 | Axial-flow ventilator | 1 | |
| 4 | vacuum pump | 1 | |
| 5 | Suction box | 2 | |
| 6 | Air pump | 1 | |
| 7 | Air tank | 1 | |
| 8 | Frequency conversion controlling cabinet | 1 | |
| 9 | 1092mm automatic rewinding machine | 1 | |
| 10 | tissue paper cutting machine | 1 | |
| 11 | Plastic bag sealing machine | 1 | |
| 12 | Boiler(burning wood) | 1 | |
| 13 | Pulp making section | 1 line | |
The process flows of toilet paper: Waste paper or wood pulp--high concentration hydra-pulper--high frequency vibrating screen--pulp pump--hydra-screen -- bleacher -- propeller-- pulp pump -- double disc pulp refiner-- pulp pump-- centrifugal screen -- pulp pump -- sand remover-- 1880 type paper machine -- full-automatic rewinding &perforating machine -- band saw paper cutter -- sealing machine -- marketing
