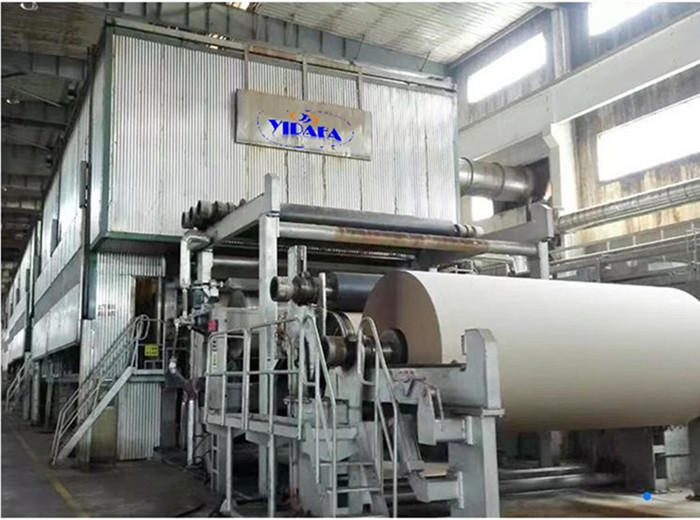

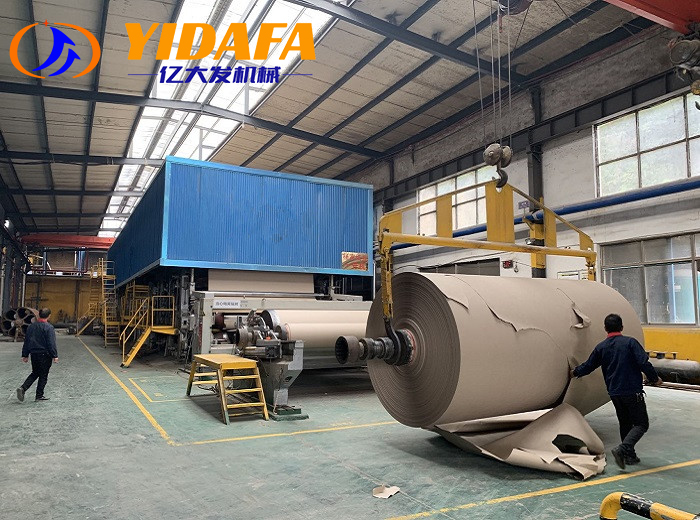

Kraft paper or testliner paper roll production machine from waste carton.
Kraft paper or testliner paper roll production machine from waste carton.
Fourdrinier type kraft paper ,corrugated paper, fluting paper making machine
Paper machine technical description: | |
1. Main products: | Kraft paper, cardboard paper, high-strength corrugated paper, etc. |
2. Quantitative: | 80～250g/㎡ |
3. Equipment form | Four cylinder wire and multi-cylinder. |
4. Output: | 50T/24h |
5. Net paper width: | 2880-2950mm |
6. Design speed: | 180m/min |
7. Transmission speed: | 60-150m/min |
8. Dynamic balance speed: | 200m/min |
9. Roller balance: | G2.5 level |
10. Dryer balance: | G4 level |
11. Paper roll: | G1.6 level |
12. Transmission mode: | AC motor, digital display division frequency conversion speed regulation drive |
13. Arrangement: | Left and right mobile phones (selected by the user) |
14. Gauge: | 4000mm |
15. Large item name 1 | Dryer: Ø1500mm×18 |
16. Large item name 2 | Net cage: Ø1500 mm×4 |

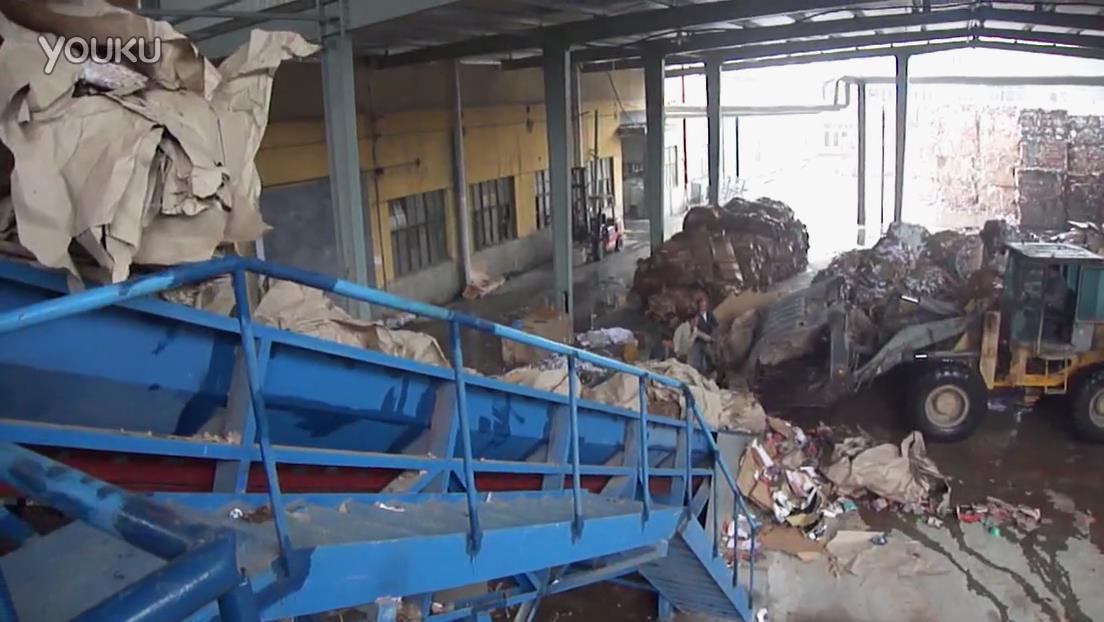

Pulping system is the waste carton, waste paper edge, wood pulp board and other raw materials after breaking, screening, grinding, and other procedures, made into the fiber water suspension in line with the requirements of paper making, and then through the flow system sent to the paper machine copy resulting in the process of meeting the requirements of users. |

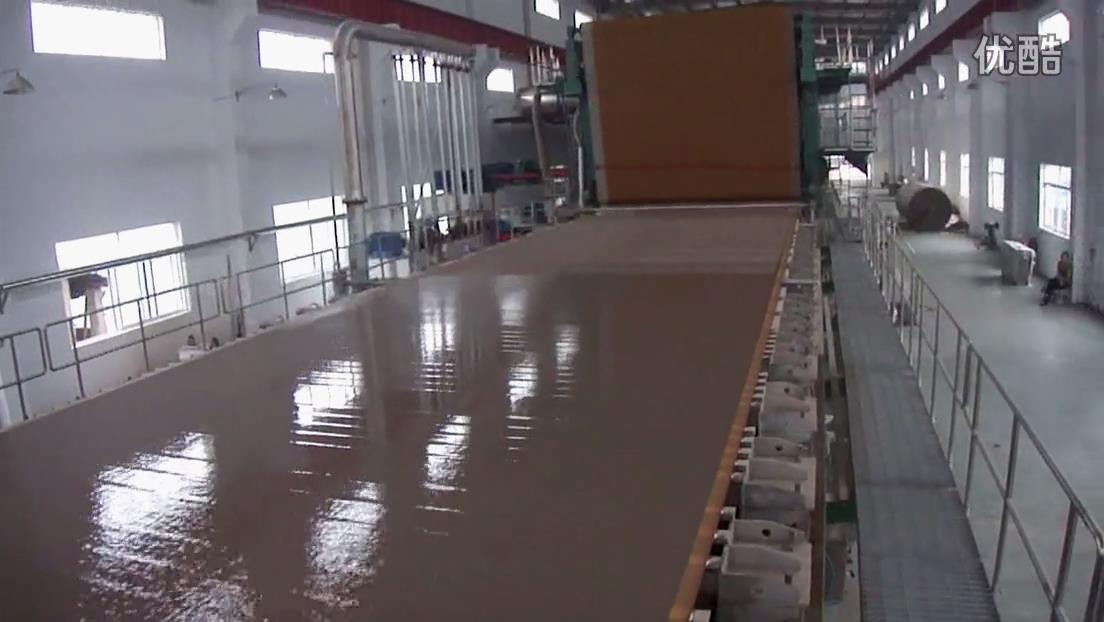

| Kraft paper machine,fluting paper machine or corrugated paper machine is a machine that converts the pulp water suspension that meets the requirements of papermaking into paper through the processes of screen dehydration, mechanical extrusion, dehydration and drying. The raw materials used are: waste paper boxes, wood pulp pulleys, etc. It can produce kraft paper, shopping bag paper, food wrapping paper, fruit wrapping paper, etc. Reliable quality, stable performance, convenient operation, energy saving and environmental protection, it is an ideal product in papermaking machinery. |
