200 Model Four heads Fully automated Spiral Paper Tube Making Machine Details:Paper tube inner diameter ：30~200mm. Paper tube wall thickness:5~15 mm.

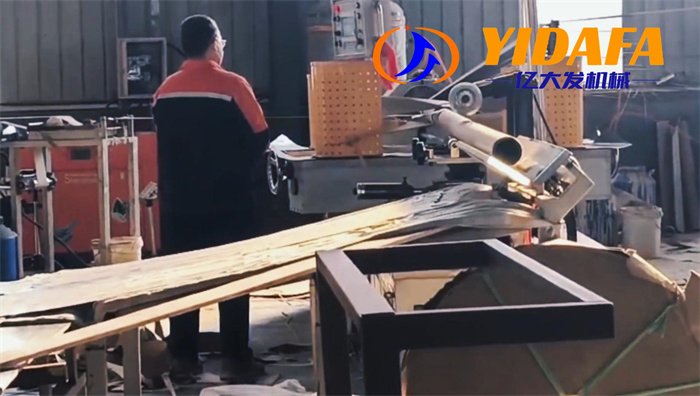

200 Model Four heads Fully automated Spiral Paper Tube Making Machine
Details:Paper tube inner diameter ：30~200mm.
Paper tube wall thickness:5~15 mm.
YDF200 Factory Supply Spiral Paper Tube Making Machine
200mm Model Spiral Paper Tube Making Machine
YDF150 paper tube making machine is a machine that produces paper tubes. The paper tubes produced by the paper tube machine are used in various industries, such as tubes for chemical fiber industry, tubes for film industry, tubes for printing industry, tubes for papermaking industry, tubes for leather industry, tubes for food packaging, tubes for construction industry, exhibition industry Use the tube and so on. There are also various types of paper tube machines. The most common paper tube machines are spiral paper tube machines and flat roll paper tube machines. Paper tube making machines can be divided into spiral paper tube making machines, parallel paper tube making machines, and pagoda-shaped paper tube making machines according to the process of rolling paper tubes.
According to different purposes, paper tube making machines can be divided into: tube cutting machine, tube rolling machine, capping machine, and precision cutting machine.
According to the degree of intelligence, the paper tube machine can be divided into: intelligent numerical control spiral paper tube making machine, program-controlled spiral paper tube making machine.
Four Heads 200mm Paper Tube Machine | |
1.Technical parameter | |
Roll tube paper layer | 3-25 (layers) |
Paper tube diameter | 30-200 (mm) |
Paper tube thickness | 5-15 (mm) |
The Finished Paper Tube Core Cutter Length | ≥1000mm |
Production speed | 0-25 (m / min) |
Fixed-length mode | Light Control (Infrared) |
Winding machine head | Four machine head |
Cutting method | Single round knife cutting |
Core mold fixed way | Flange plus tight |
Glue way | Double-sided adhesive |
control method | Frequency |
Input voltage | 380V / 220V |
Number of operators | 1-3 people |
2.Size | |
Host Size: L * W * H | 4200mm*1700mm*1900mm |
Land area: length *width | 20000mm*9000mm |
Hub diameter | 294mm |
Hub height | 360mm/430mm |
Minimum track | 1000mm |
The biggest argument | 1250mm |
total weight | 4500kg |
3.Drive System | |
Monitor rate | 18kw Shanghai strong speed |
Host speed | 1400r / min |
The maximum wheel speed | 47r / min |
Hub output torque | 8500N.m |
Reducer models | WPO 155 Hangzhou Xiaoshan |
Drive chain model | 12A * 2 |
Wheel drive | 4 wheel drive |
Cutter motor | 0.4kw gear motor Shanghai Ott |
Bearing | Universal bearings |
4.Control System | |
Inverter | An Rui Ji products |
The main implementation of the device (contactors,etc.) | Chint product |
Signal element (proximity switch, etc.) | Shanghai industrial products |
Cylinder components | tian ao products |
Synchronous control | pneumatic |
Fixed-length way | Proximity switch |
PLC controller | wei kong products |
HMI | Kunlun products |
Emergency stop button | Jiangyin Yangtze River brand |
5.Configuration device | |
Drop tube rack | automatic |
Belt adjustment | Adjust manually |
Paper frame swing angle | Adjust manually |
For glue | Automatic stainless steel heating plastic tank |
Bottom paper for lubrication | Automatic lubrication of stainless steel basin |
Tension adjustment | Mechanical adjustment |
Paper holder type | Right-angle fixed lifting on the paper holder |
Roll mandrel | 1 |
Roll tube belt | 2 pieces |
Applications | Have |
Bottom, surface paper device | Stainless steel paper holder, paper cone |
Under the rack | Stainless steel plate |
Host | Stainless steel countertops |
Paper guide | stainless steel pipe |
This machine adopts advanced production and processing technology, with the four main driving wheel assembly, full computer digital frequency control, automatic tracking in cutting .This paper tube making machine is suitable for manufacturing and processing paper tube or tube core in paper making, chemical fiber, texti le, plastic, medicine, food and packaging industries.
