The toilet paper production line from waste paper and bamboo etc includes two main parts: 1.Recycled Pulp/Chemical Paper Pulp System. 2.Jumbo roll forming (toilet paper making machine)

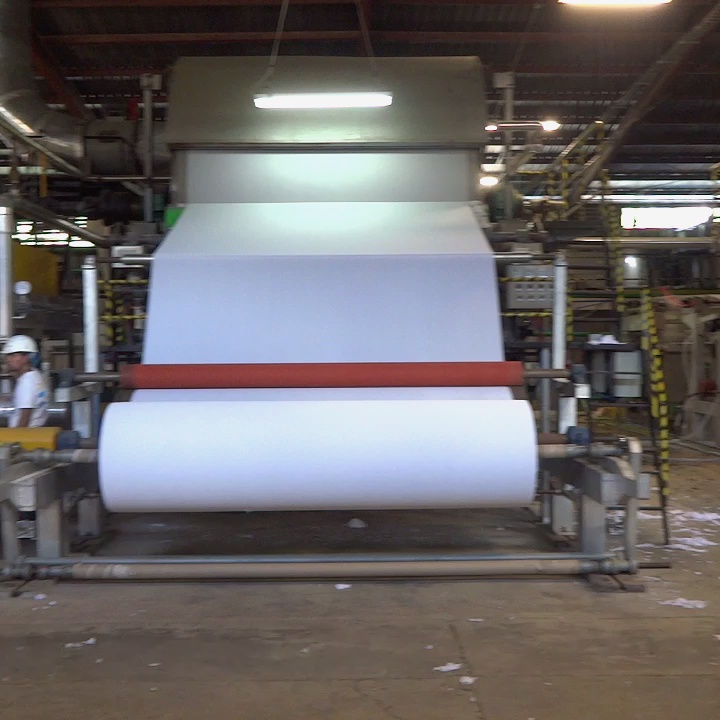

RAW MATERIAL JUMBO PARENT TISSUE ROLL TOILET PAPER PRODUCTION MACHINE
The toilet paper production line from waste paper and bamboo etc includes two main parts:
1.Recycled Pulp/Chemical Paper Pulp System.
2.Jumbo roll forming (toilet paper making machine)
Pulping system is the waste carton, waste paper edge and other raw materials after breaking, grinding, screening and other procedures, made into the fiber water suspension to meet the requirements of paper making, and then through the flow system sent to the paper machine copy resulting in meeting the requirements of the user process
| Paper making machine technical specification: | |
1.Main Product: | Toilet paper, napkin paper and drawing and so on |
2.Grammage: | 13~30g/ |
3.Equipment form | The inversion of slurry |
4.Capacity: | 5~6 T/24h |
5.Raw paper width: | 1880-1950mm |
6.Design speed: | 180m/min |
7.Transmission speed: | 70-150m/min |
8.Dynamic balancing speed: | 300m/min |
9.Roller balance: | G2.5 class |
10.Dryer balance: | C4 class |
11.Winding paper roll: | C1.6 class |
12.Transmission mode: | Ac motor frequency control of motor speed digital distribution transmission |
13.Arrangement mode: | Right or left arrangement(selected by the user) |
14.Gauge: | 2800mm |
| 15.Large equipment 1 | Dryer cylinder:Ø2500mm×1 set |
| 16.Large equipment 2 | Cylinder mould:Ø1800 mm×1se |
