200 Model Four heads Fully automated Spiral Paper Core Making Machine in China Details:Paper tube inner diameter ：30~200mm. Paper tube wall thickness:5~15 mm.
China 200 Model Four heads Fully automated Spiral Paper Tube Making Machine
Details:Paper tube inner diameter ：30~200mm.
Paper tube wall thickness:5~15 mm.
Paper Core Machine China
200mm Model Spiral Paper Core Making Machine From China

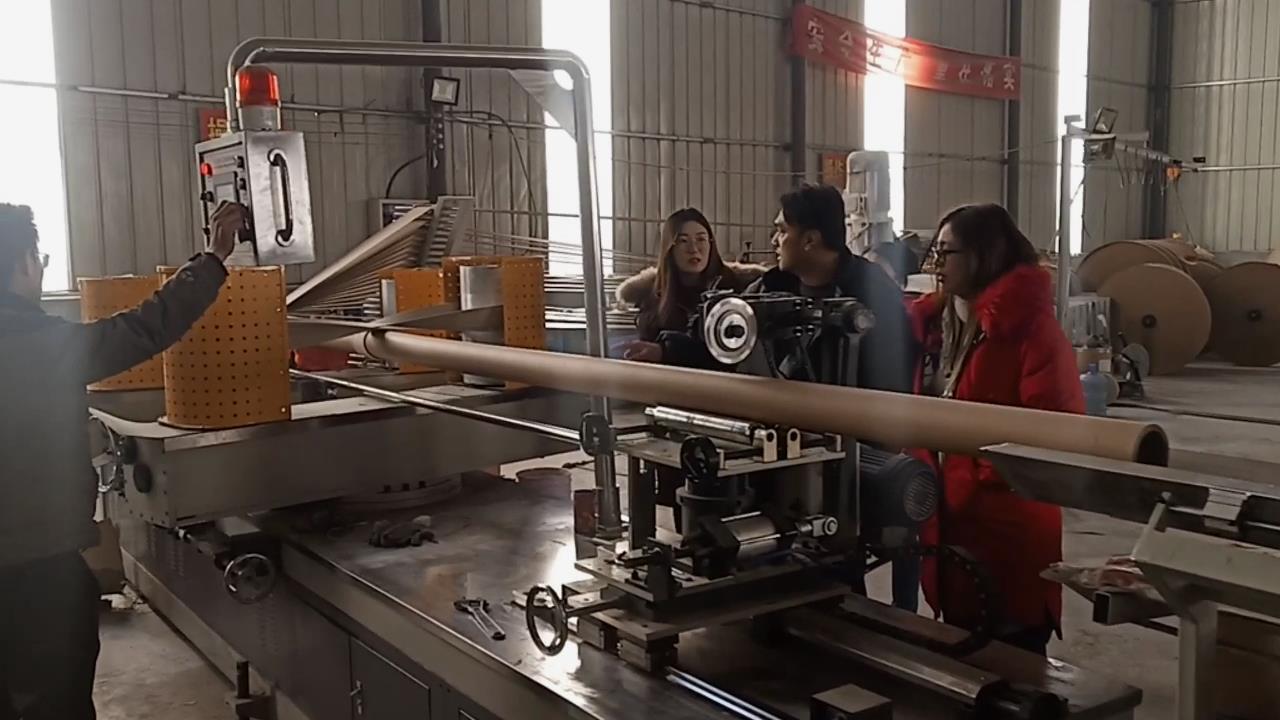

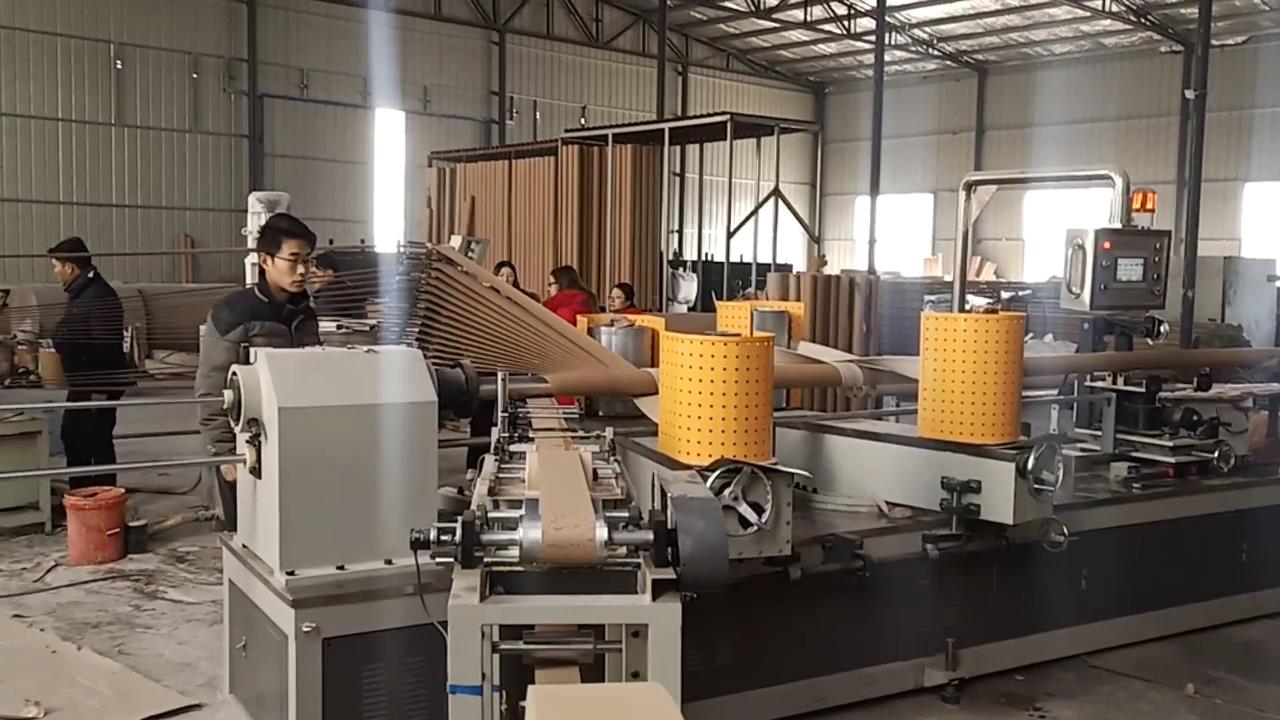

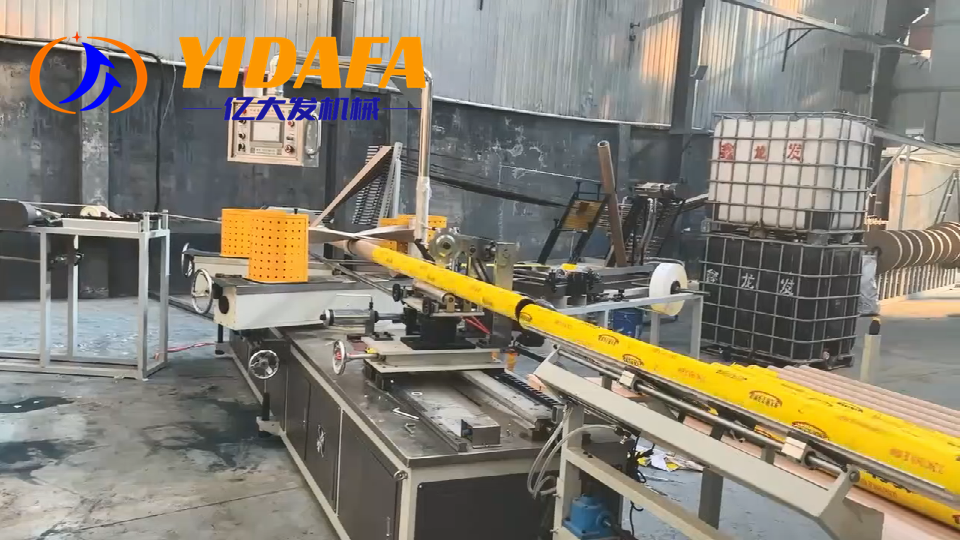

YIDAFA is professional one of the paper core machine manufacturer in China.This paper core machine adopts advanced production and processing technology, with the four main driving wheel assembly, full computer digital frequency control, automatic tracking in cutting .This paper core making machine is suitable for manufacturing and processing paper tube or tube core in paper making, chemical fiber, texti le, plastic, medicine, food and packaging industries.
Four Heads 200mm Paper Tube Machine | |
1.Technical parameter | |
Roll tube paper layer | 3-25 (layers) |
Paper tube diameter | 20-200 (mm) |
Paper tube thickness | 2-16 (mm) |
The Finished Paper Tube Core Cutter Length | ≥1000mm |
Production speed | 0-25 (m / min) |
Fixed-length mode | Light Control (Infrared) |
Winding machine head | Four machine head |
Cutting method | Single round knife cutting |
Core mold fixed way | Flange plus tight |
Glue way | Double-sided adhesive |
control method | Frequency |
Input voltage | 380V / 220V |
Number of operators | 1-3 people |
2.Size | |
Host Size: L * W * H | 4200mm*1700mm*1900mm |
Land area: length *width | 20000mm*9000mm |
Hub diameter | 294mm |
Hub height | 360mm/430mm |
Minimum track | 1000mm |
The biggest argument | 1250mm |
total weight | 4500kg |
3.Drive System | |
Monitor rate | 18kw Shanghai strong speed |
Host speed | 1400r / min |
The maximum wheel speed | 47r / min |
Hub output torque | 8500N.m |
Reducer models | WPO 155 Hangzhou Xiaoshan |
Drive chain model | 12A * 2 |
Wheel drive | 4 wheel drive |
Cutter motor | 0.4kw gear motor Shanghai Ott |
Bearing | Universal bearings |
4.Control System | |
Inverter | An Rui Ji products |
The main implementation of the device (contactors,etc.) | Chint product |
Signal element (proximity switch, etc.) | Shanghai industrial products |
Cylinder components | tian ao products |
Synchronous control | pneumatic |
Fixed-length way | Proximity switch |
PLC controller | wei kong products |
HMI | Kunlun products |
Emergency stop button | Jiangyin Yangtze River brand |
5.Configuration device | |
Drop tube rack | automatic |
Belt adjustment | Adjust manually |
Paper frame swing angle | Adjust manually |
For glue | Automatic stainless steel heating plastic tank |
Bottom paper for lubrication | Automatic lubrication of stainless steel basin |
Tension adjustment | Mechanical adjustment |
Paper holder type | Right-angle fixed lifting on the paper holder |
Roll mandrel | 1 |
Roll tube belt | 2 pieces |
Applications | Have |
Bottom, surface paper device | Stainless steel paper holder, paper cone |
Under the rack | Stainless steel plate |
Host | Stainless steel countertops |
Paper guide | stainless steel pipe |
