High Quality Automatic A4 office Paper Making Machine A4 Copier Paper Cutting Machine|YIDAFA

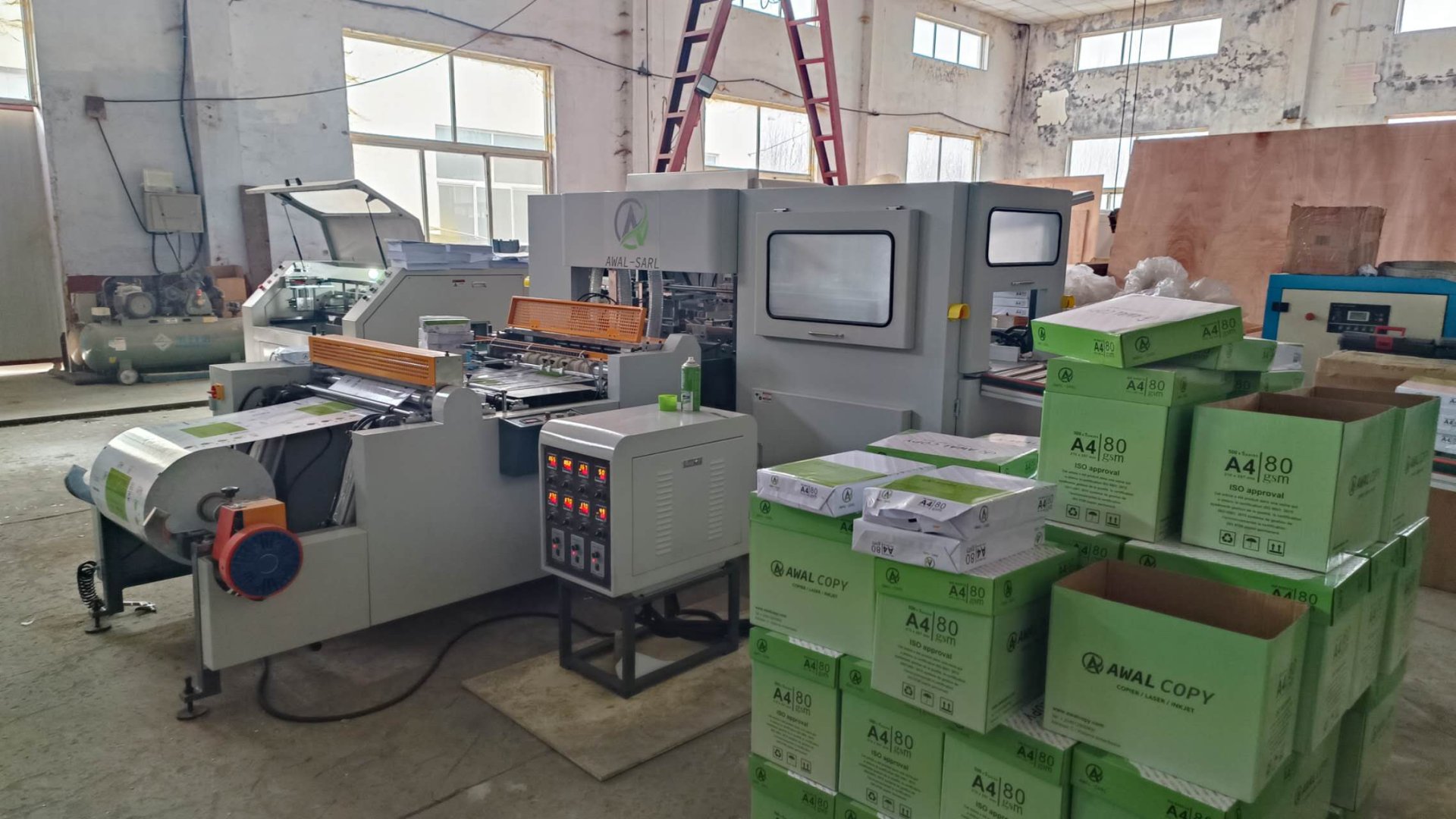

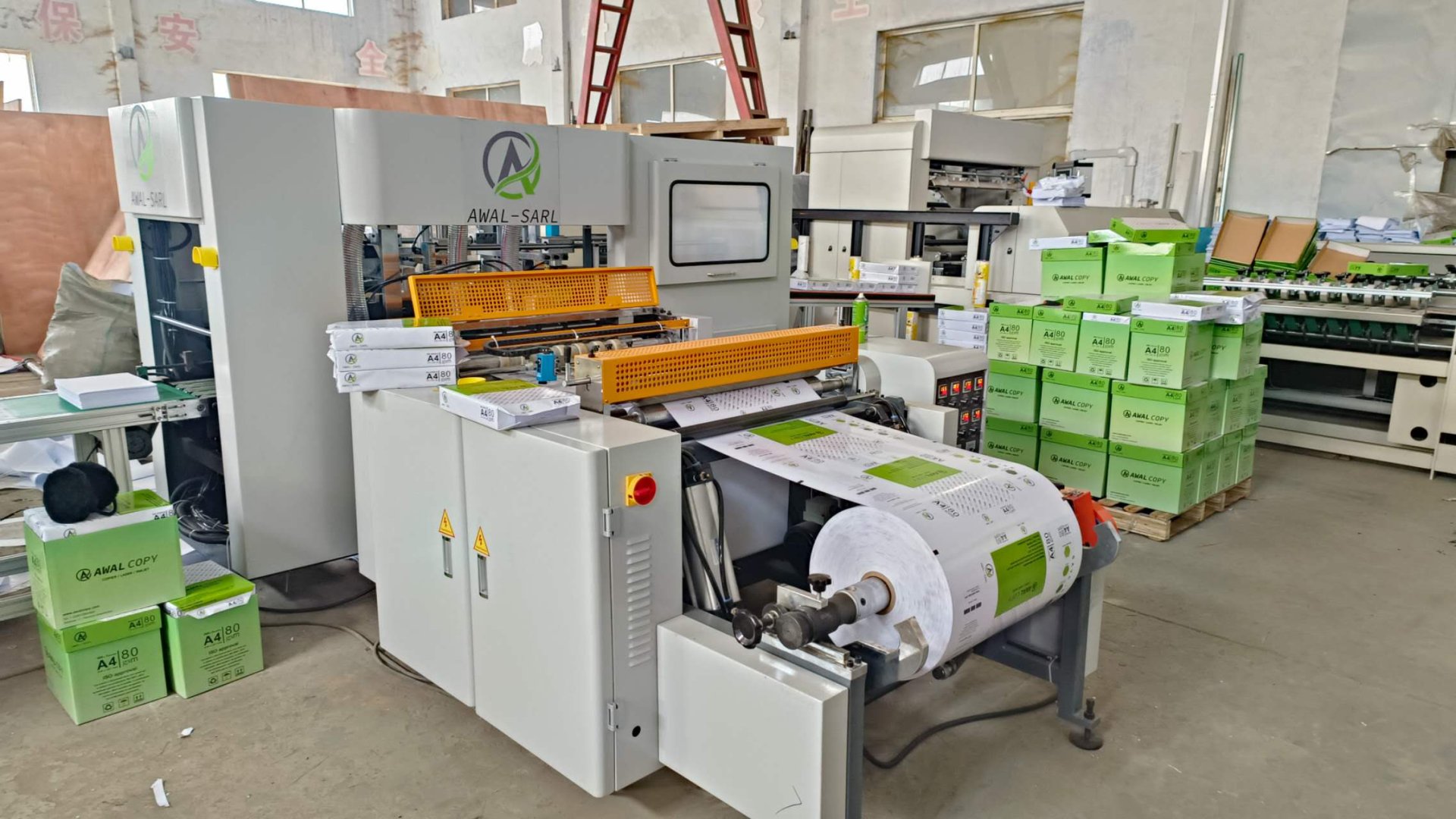

A4 paper cutting machine is used for cutting a4 size paper sheet from big copy paper rolls.It could be connected with automatic a4 paper packaging machine.
Performance and features:
This machine is suitable for cutting all kinds of paper, self-adhesive, paper-plastic composite, non-woven fabric and other large roll packaging materials. This machine adopts servo motor to control fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas. It has the advantages of simple operation, high cutting precision, mechanical stability and low noise. Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder taper automatic tension adjustment function. It is an ideal equipment for cutting large-scale paper rolls or coils with high quality in China.
Features:
Host frequency conversion speed regulation, Panasonic PLC touch screen control system, automatic counting, automatic fixed length, alarm stop, automatic control and other functions
The frame adopts 16mm steel plate structure, the cross-cut knife seat adopts heavy-duty casting structure, and the guide roller adopts dynamic balance processing aluminum alloy guide roller
The drive positioning traction adopts the drive shaft structure of the servo system, and the feeding traction mode is that the motor drives the sprocket to drive the traction rubber shaft.
This machine is an ideal online cross-cutting equipment with high precision and high speed.
Main technical parameters:
model | YDF-1100 |
raw material maximum diameter | 1400mm |
cutting width | 1100mm |
cut length | 297mm |
cutting speed | 20-150times/min |
Horizontal precision | ±0.2mm |
total power | 11kw |
machine weight | 5000kg |
Dimensions (L×W×H) | 9200×2210×2000mm |
