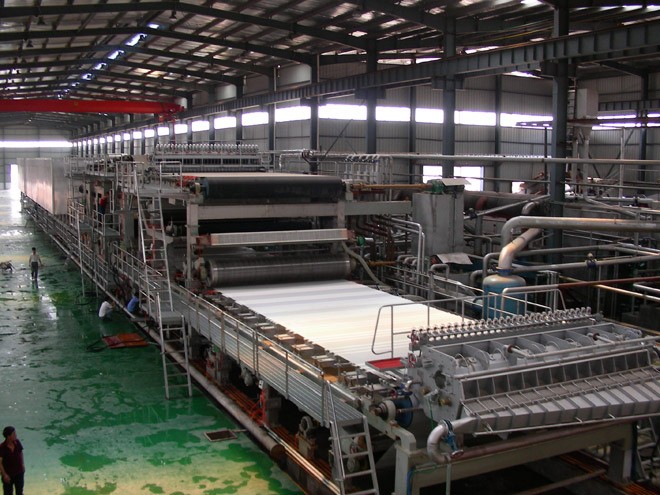

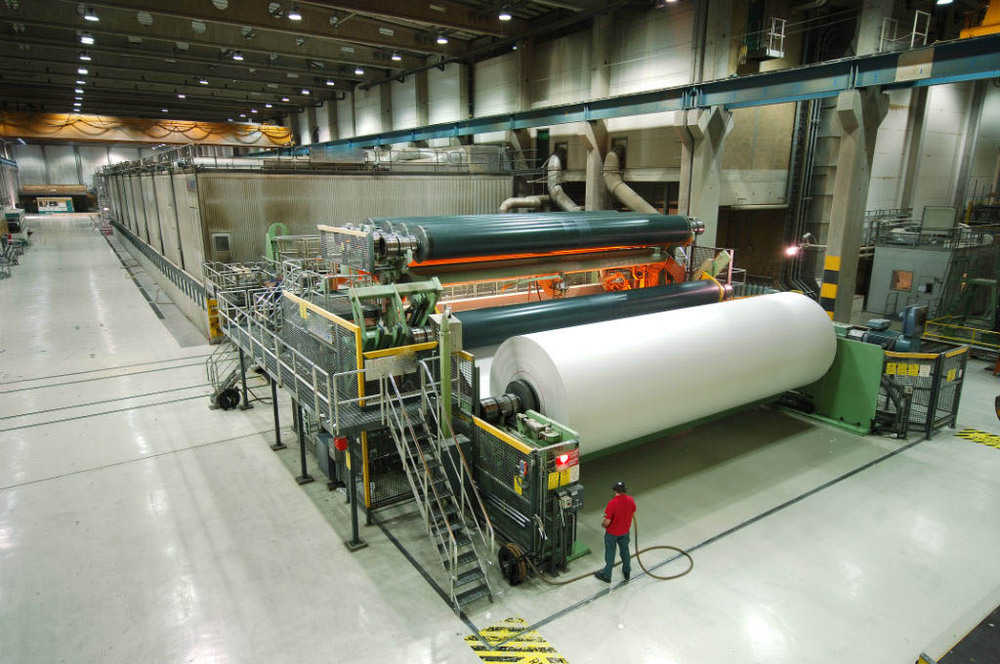

Bamboo Pulp Writing Printing Paper Machine

1. Application:

Used for making writing printing paper ,copy paper and a4 paper etc.

2. Gsm:

40～100g/㎡

3. The Form of Machine

Fourdrinier wire and Multi-cylinder

4. Capacity:

50T/24h

5. Paper Width:

2640-2750mm

6. Design Speed:

300m/min

7. Driving Speed：

150-270m/min

8. Dynamic Balance Speed:

500m/min

9. Roller Balance:

G2.5

10. Dryer Cylinder Balance:

G4

11. Roller:

G1.6

12. Driving Mode:

Ac motor · digital display partial frequency conversion speed regulation drive

13. Arrangement Mode

Left or Right hand

14. Track Gauge

3700mm

15.Large Equipment No.1

Dryer Cylinder:Diameter 1500mm (20 sets)

16.Large Equipment No.2

Fourdrinier Section :10830mm length
