A4 Paper Roll To A4 Sheet Ream Making Manufacturing Machine
A4 paper roll to a4 sheet manufacturing machine could make a4 size sheet from big copy paper rolls.Including automatic cutting unit and packing machine function.Then pack it into a4 paper reams automatically.
PRODUCT DETAILS
A4 Paper Roll to A4 Size Sheet Ream Manufacturing Machine,also named High Speed A3 A4 White Paper Cutting Packaging Machinery.This machine could make a4 size sheet from big copy paper rolls.Including automatic cutting unit and packing machine function.
A4 Paper Roll To A4 Sheet Ream Making Manufacturing Machine

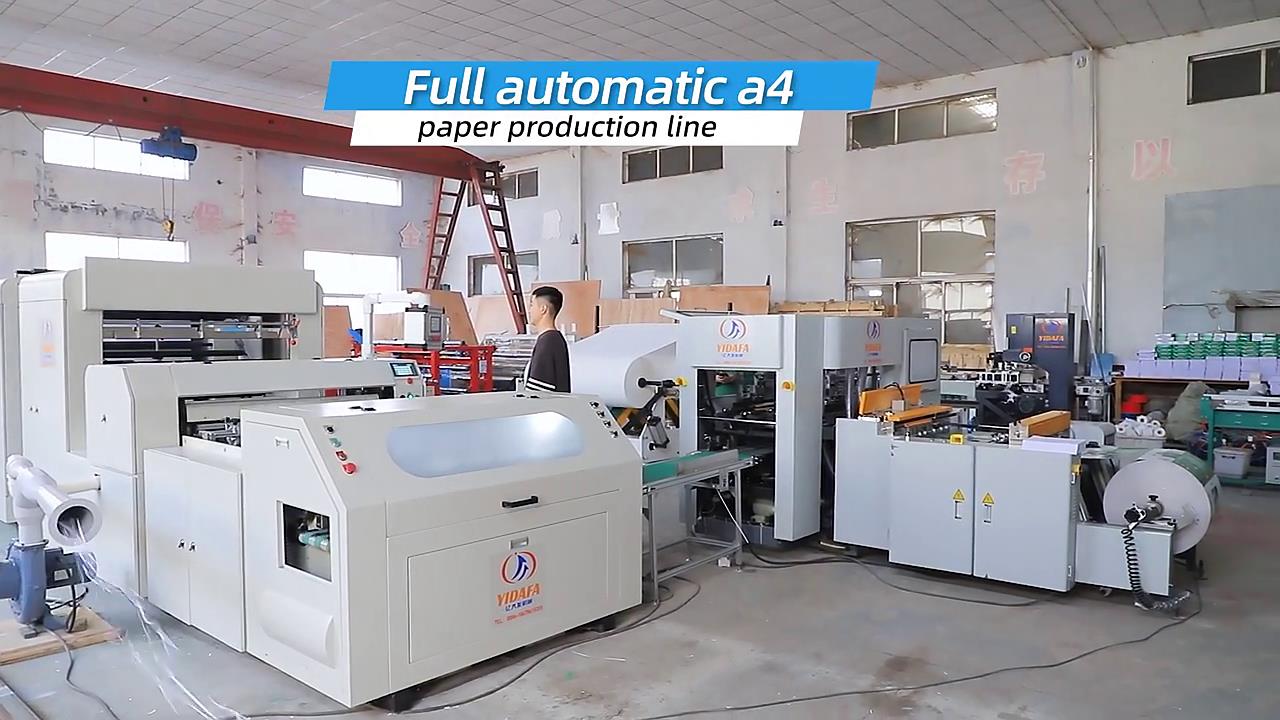

A4 Paper Roll To A4 Sheet Ream Making Manufacturing Machine is full automatic a4 or a3 paper cutting and packaging machine from paper roll to a4 sheet.It is widely used a4 paper manufacturing plant.including cutting function and packing unit.
China Suppliers Automatic A4 Paper Cutting And Packing Machine
Performance and Characteristics：

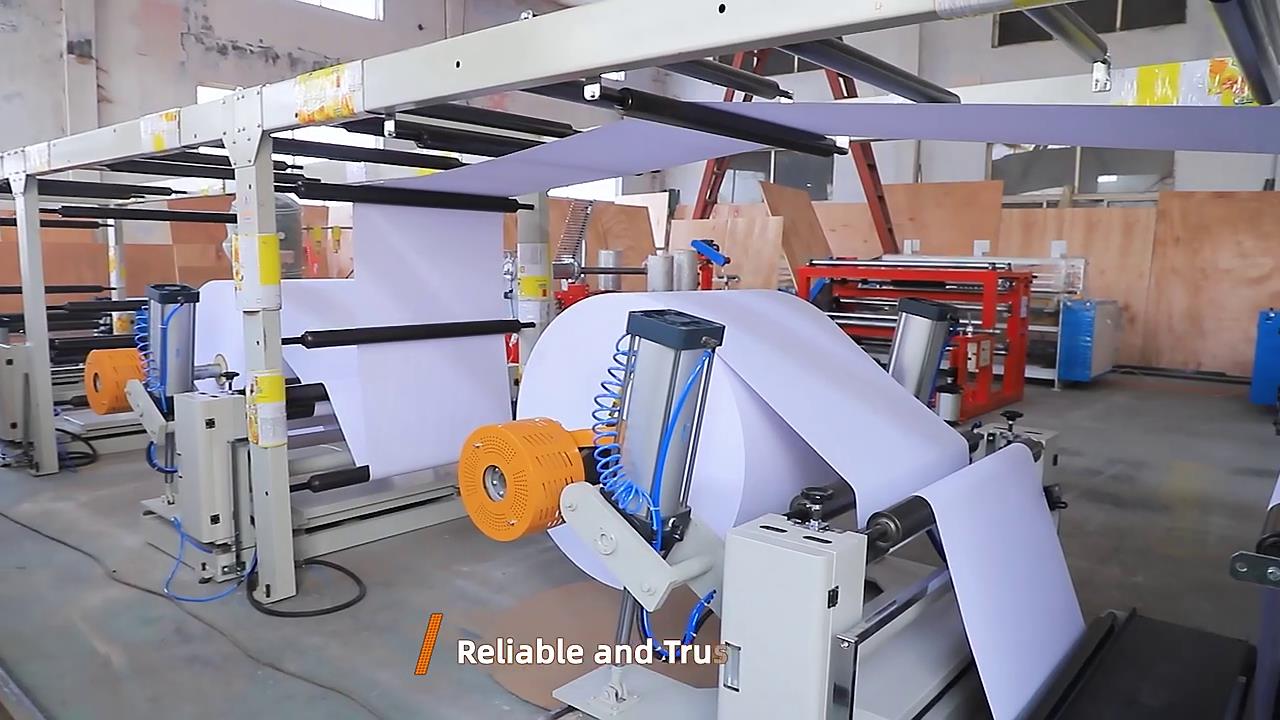

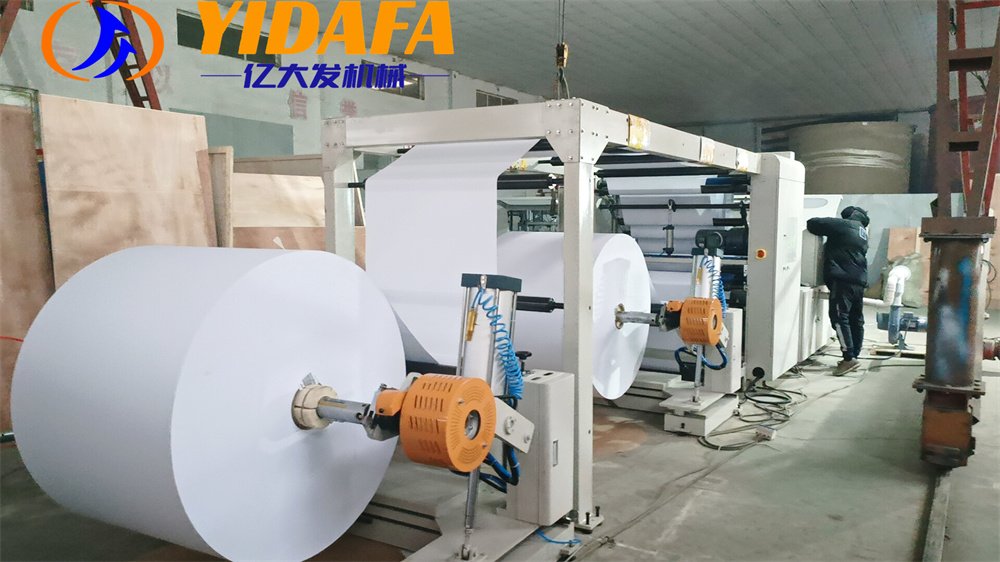

Adopts pneumatic automatic materials loading system with much easy operation and convenience
Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting and vertical cutting at one time
It adopts servo motor for controlling constant-length cutting。
It adopts PLC control, contact screen operation
It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.
This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste
It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation
It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system
China Suppliers Automatic A4 Paper Cutting And Packing Machine
Product name
One roll,Two rolls,Four rolls or Five rolls. Full Automatic A4 paper cutting and packaging machine
Maxi width of paper rolls
1100mm
Cutting length
100~500mm
Cutting Speed
1.5 reams per minute,3 reams per minute,6 reams per minute, 7.5 reams per minute.
Paper Grade
High-grade copy paper; High-grade office paper, High grade Free Wood paper etc.
Paper Weight Range
60-100g/㎡
Machine Speed
10-200times/min
Cutting Accuracy
±0.3mm
Cutting Condition
No variation of the speed, no break, cut all the paper at one time and need the eligible paper
Cutting specifications
210*297mm or a3 ,a5 size etc.

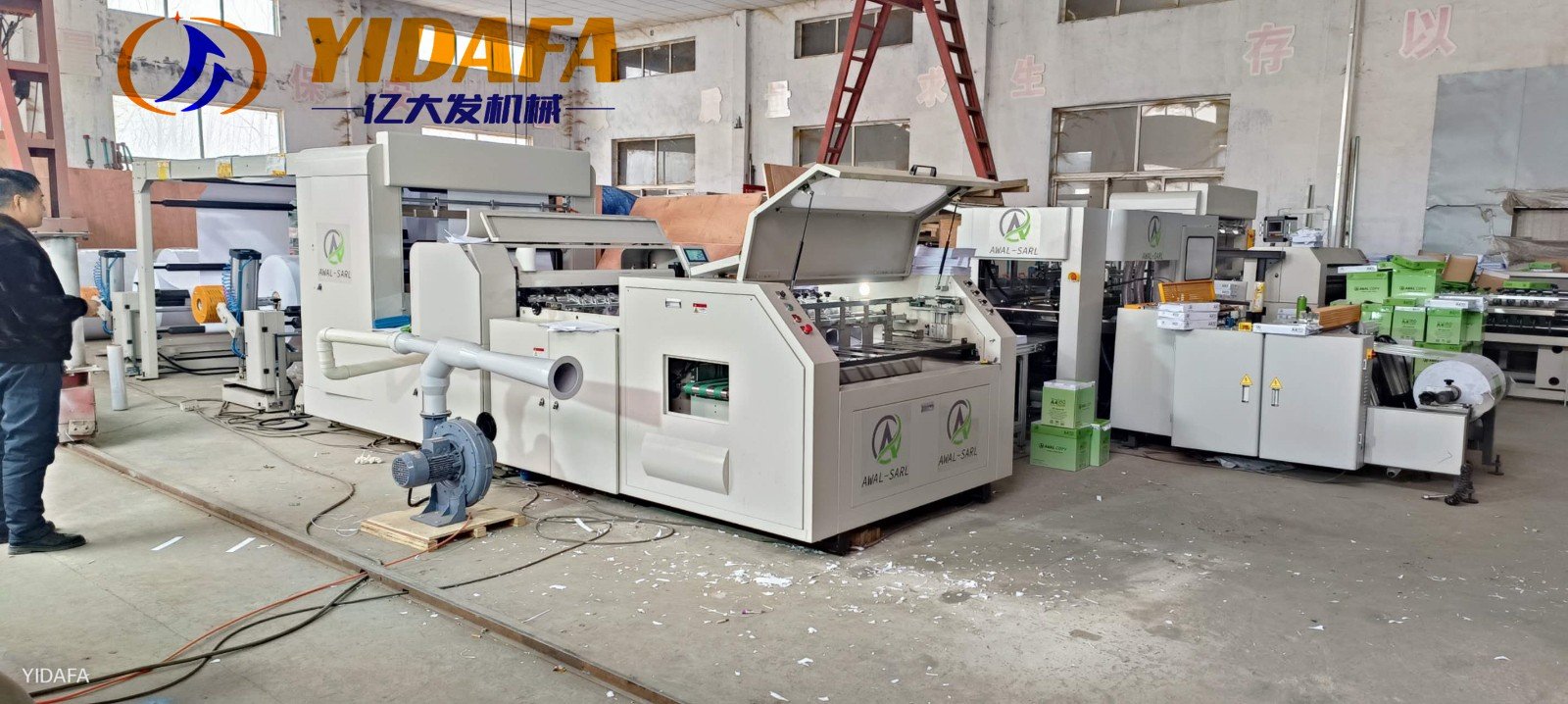

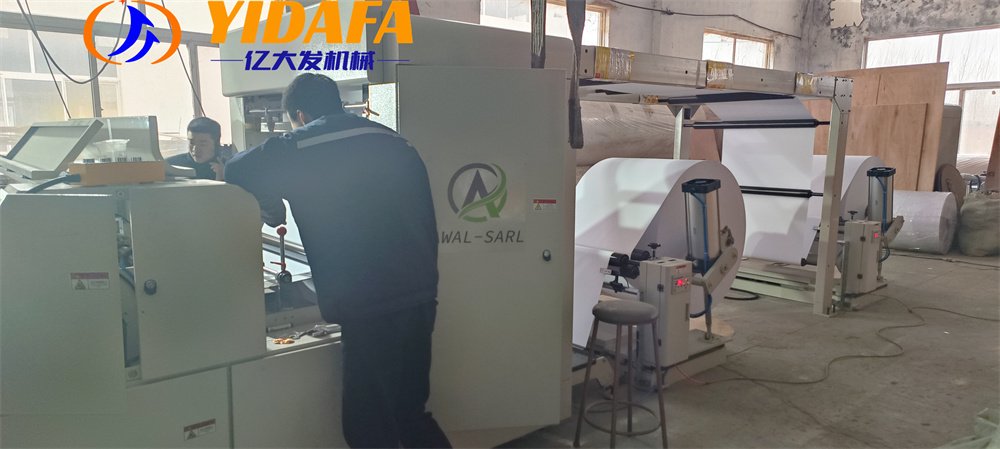

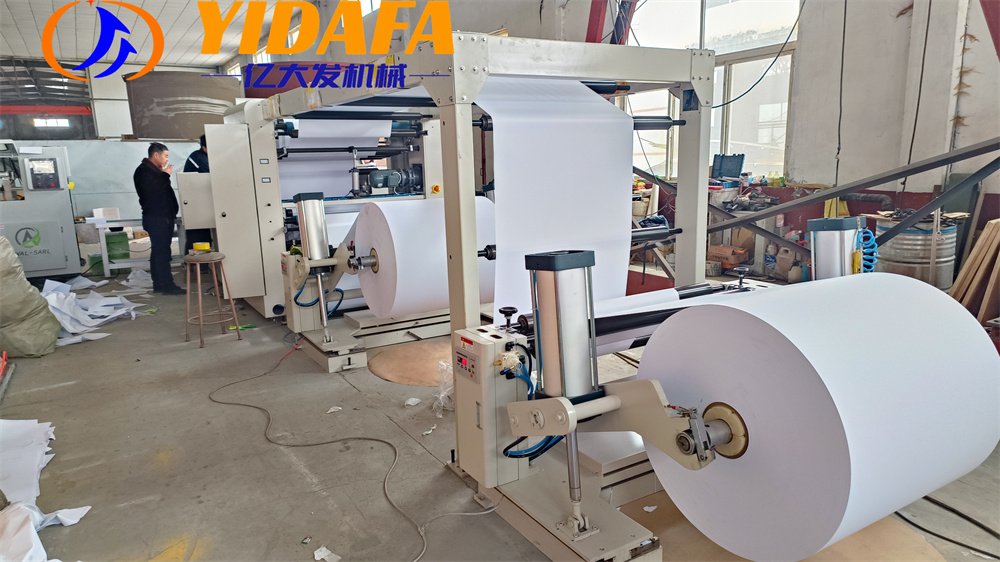

Cutting unit could cut a3,a4,a5 size sheet from big paper rolls.Then the finished paper could be widely used for writing and printing industry.China Suppliers Automatic A4 Paper Cutting And Packing Machine
China Suppliers Automatic A4 Paper Cutting And Packing Machine
China Suppliers Automatic A4 Paper Cutting And Packing Machine

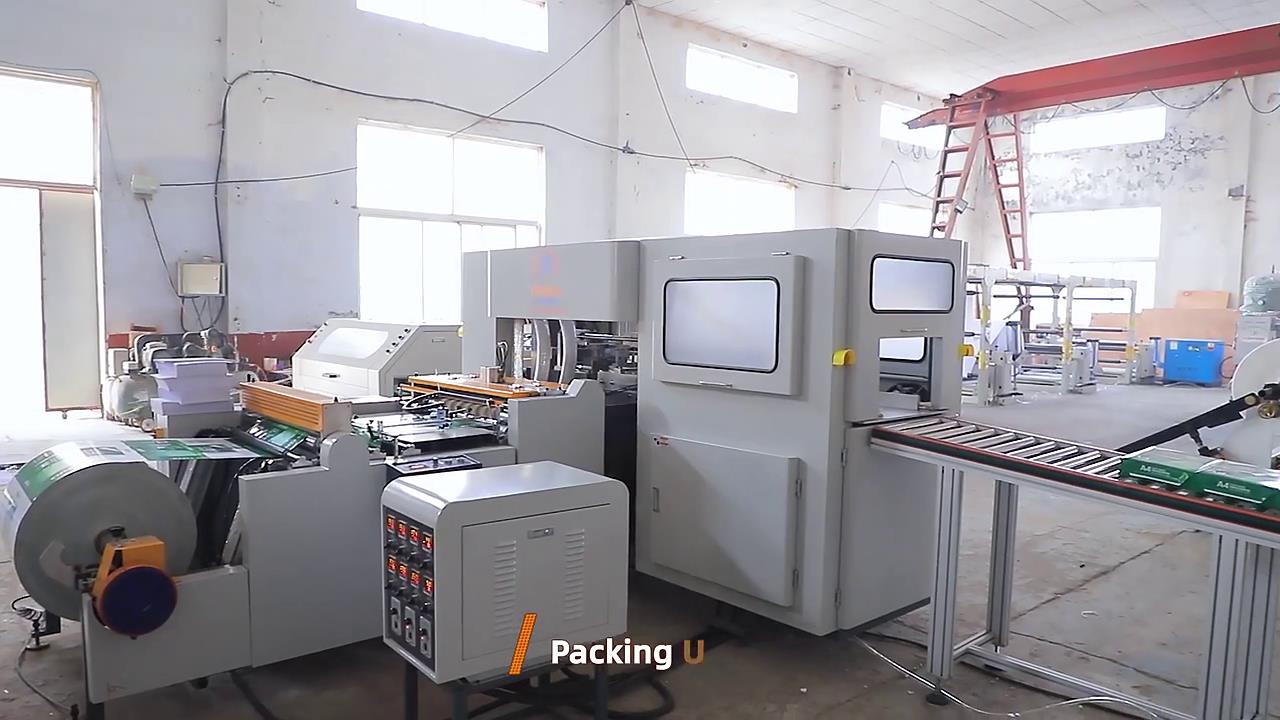

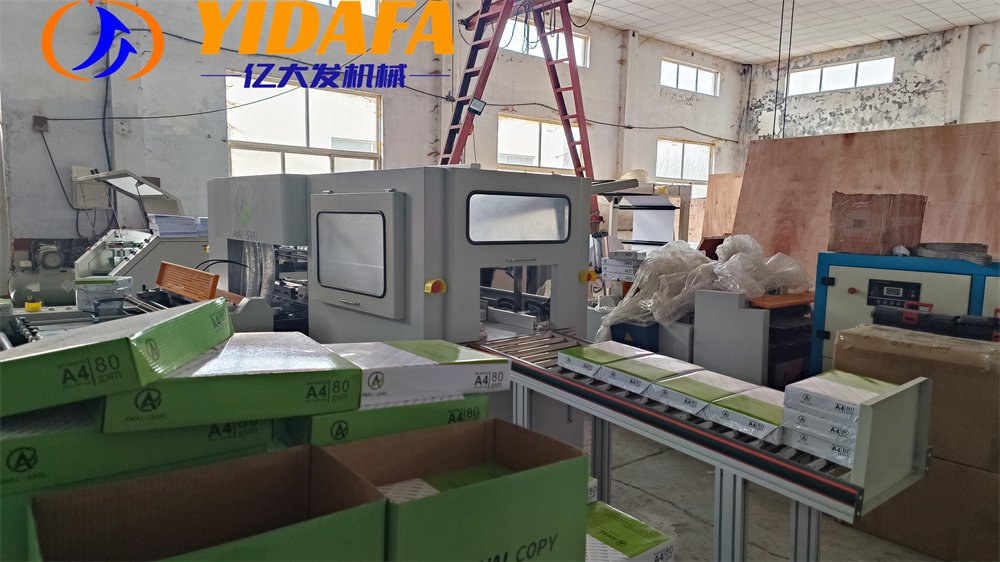

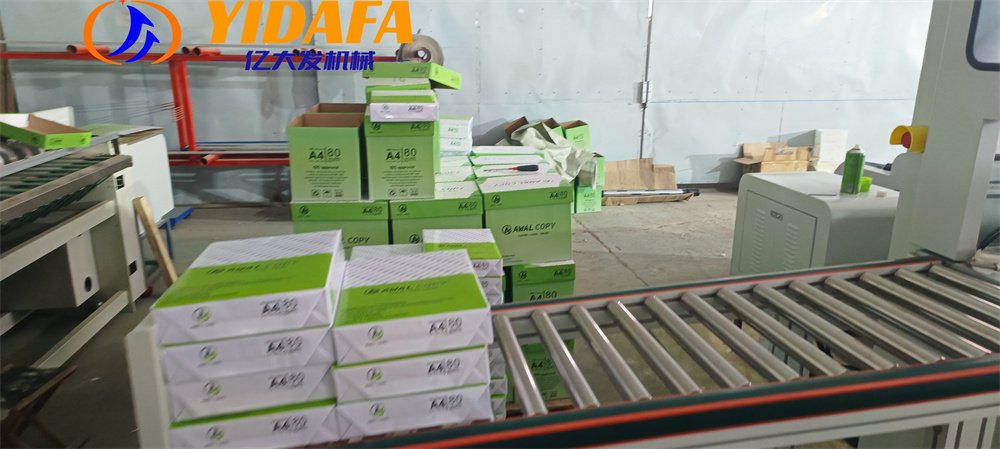

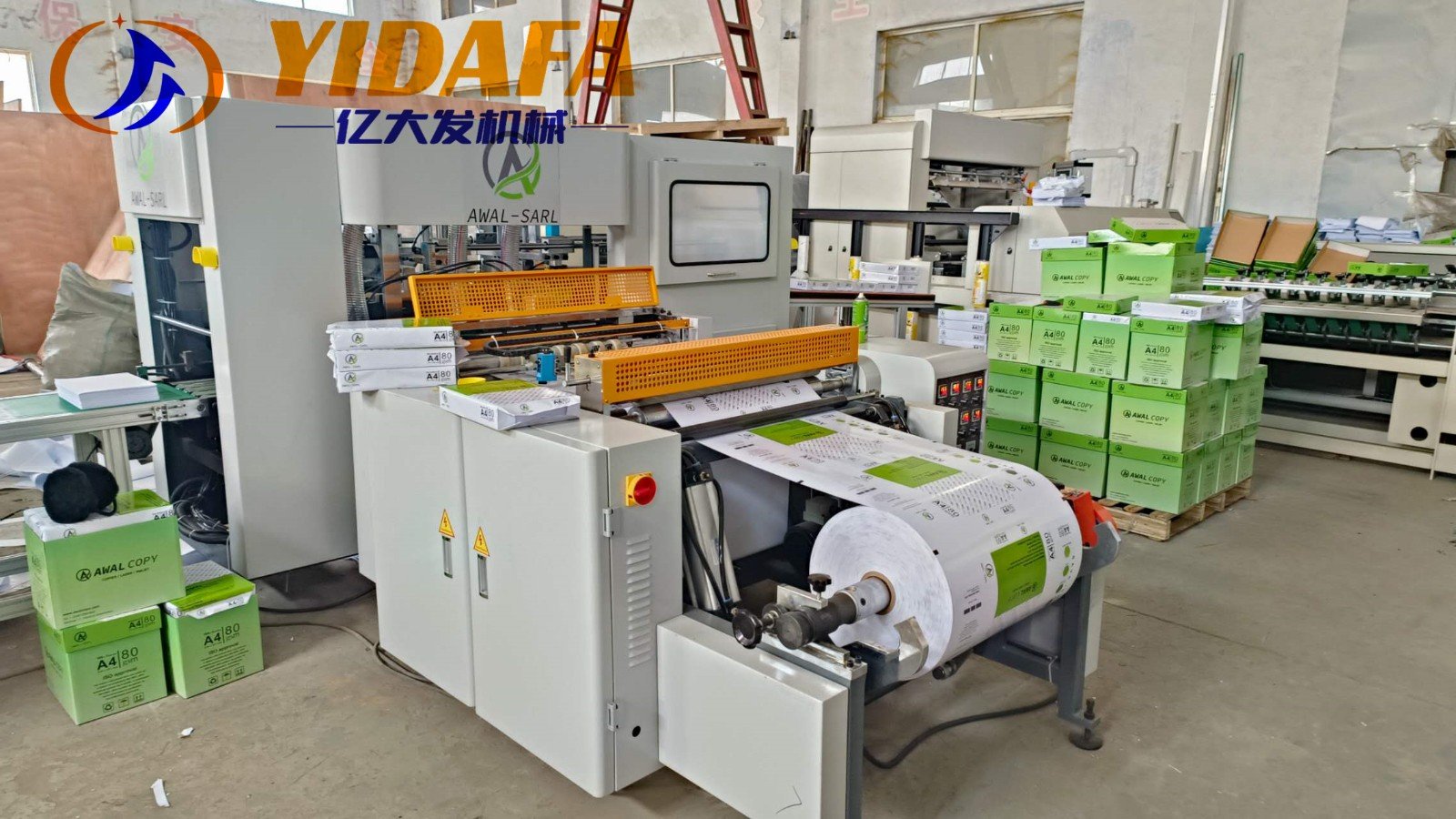

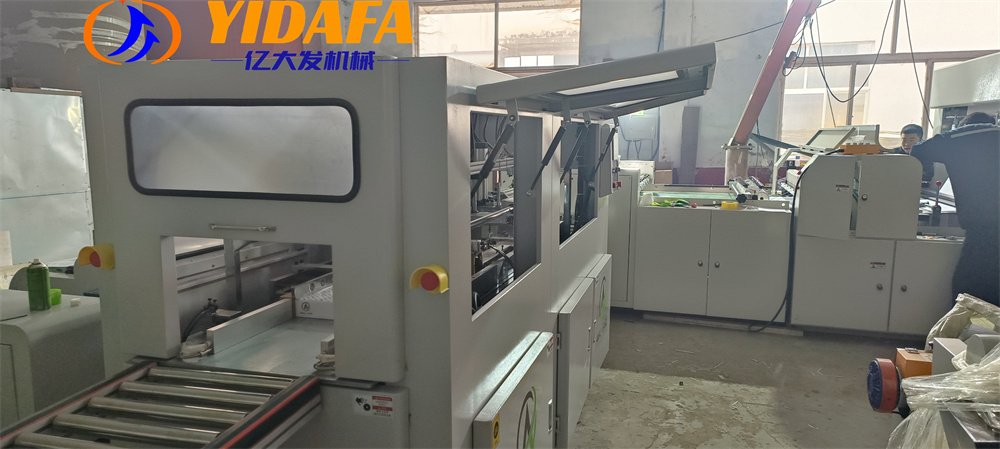

Packaging Unit could wrap a4 size paper reams automatically.It is controlled by PLC with high speed.The finished product is clean and beautiful.
China Suppliers Automatic A4 Paper Cutting And Packing Machine
China Suppliers Automatic A4 Paper Cutting And Packing Machine
China Suppliers Automatic A4 Paper Cutting And Packing Machine
