A4 Paper Cutting Machine

Fully Automatic A4 80gsm Copy Paper Production Line Paper Sheet Cutting Machine With Ream Wrapping Function.

PRODUCT DETAILS

a4 size paper sheet cutting machine from jumbo rolls. There are one roll, two rolls ,four rolls and

PRODUCT DETAILS

A4 paper cutting machine is a traditional product, which is used to deal with the paper cutting demand in the later stage of printing. From the mechanical paper cutting machine to the tape controlled paper cutter, and to the cutting system with microcomputer program control, color display, full-image operation guidance and visual processing, and computer-aided cutting external programming and editing of production data, the production preparation time is shorter, the cutting accuracy is higher, the labor intensity is lower, and the operation is safer.

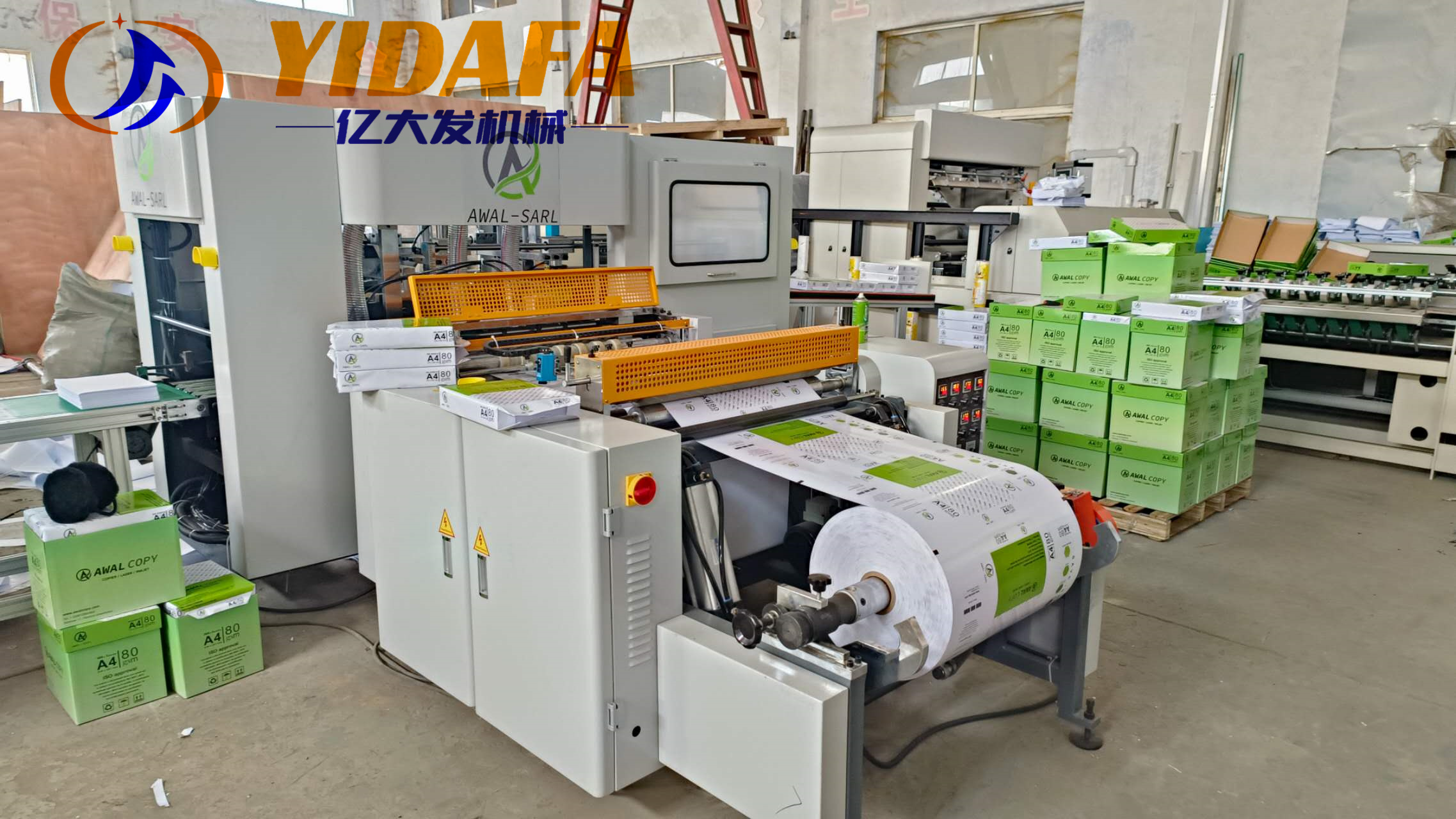

YIDAFA a4 paper cutting machine has automatic PLC control,This machine is specially used for cutting A4/A3 xerographic paper and other kinds of web packaging paper, high-gloss photo paper and paper-plastic composite materials horizontally and vertically. It can also load multiple rolls at the same time, and can be connected to the automatic packer. It is widely used in the printing paper processing industry.

  • 1. The machine adopts PLC to control the fixed length, and has automatic counting, alarm and shutdown functions.

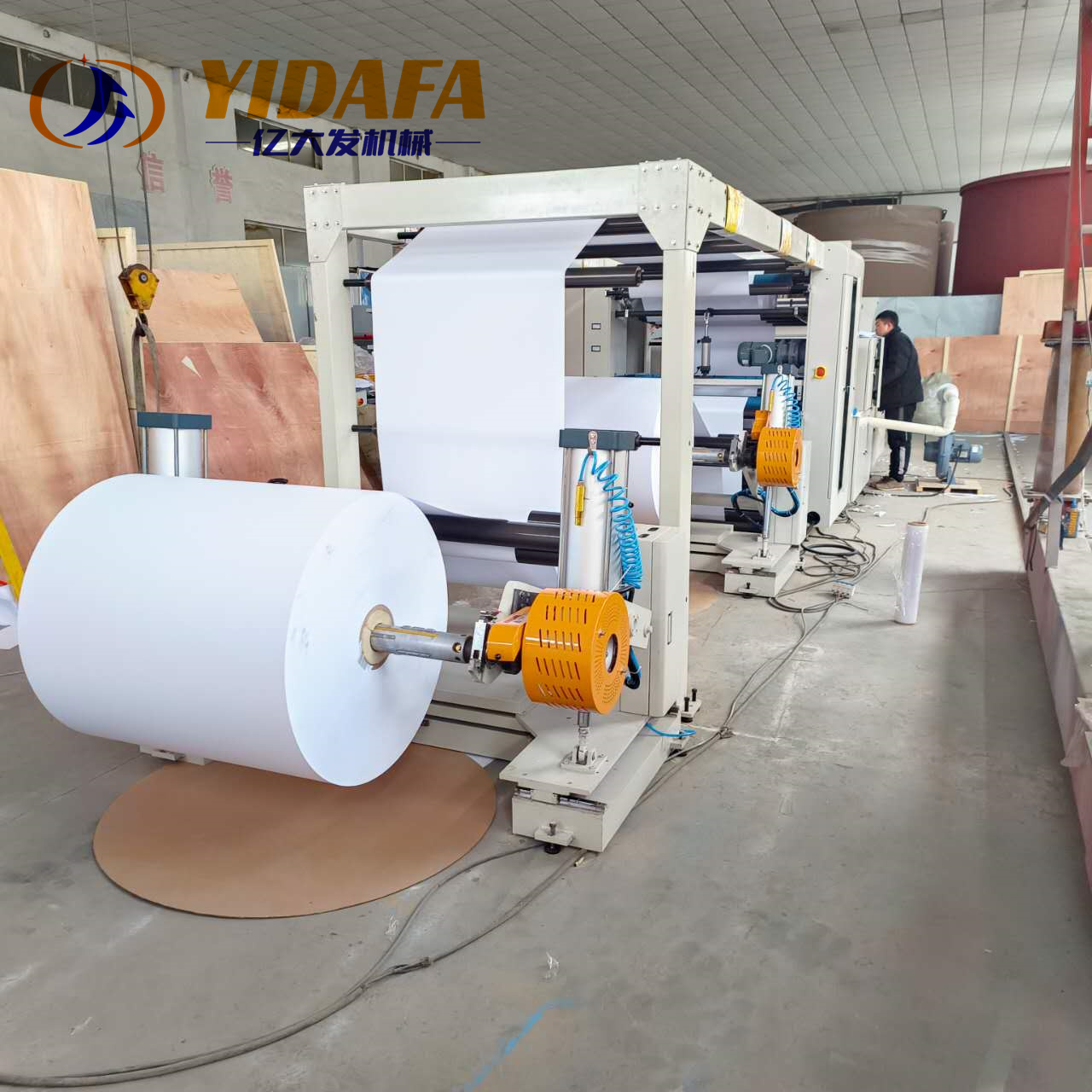

  • 2. Unwinding can cut multiple rolls horizontally and vertically at the same time.

  • 3. Longitudinal slitting A4/A3 size specification, waste edge fan elimination.

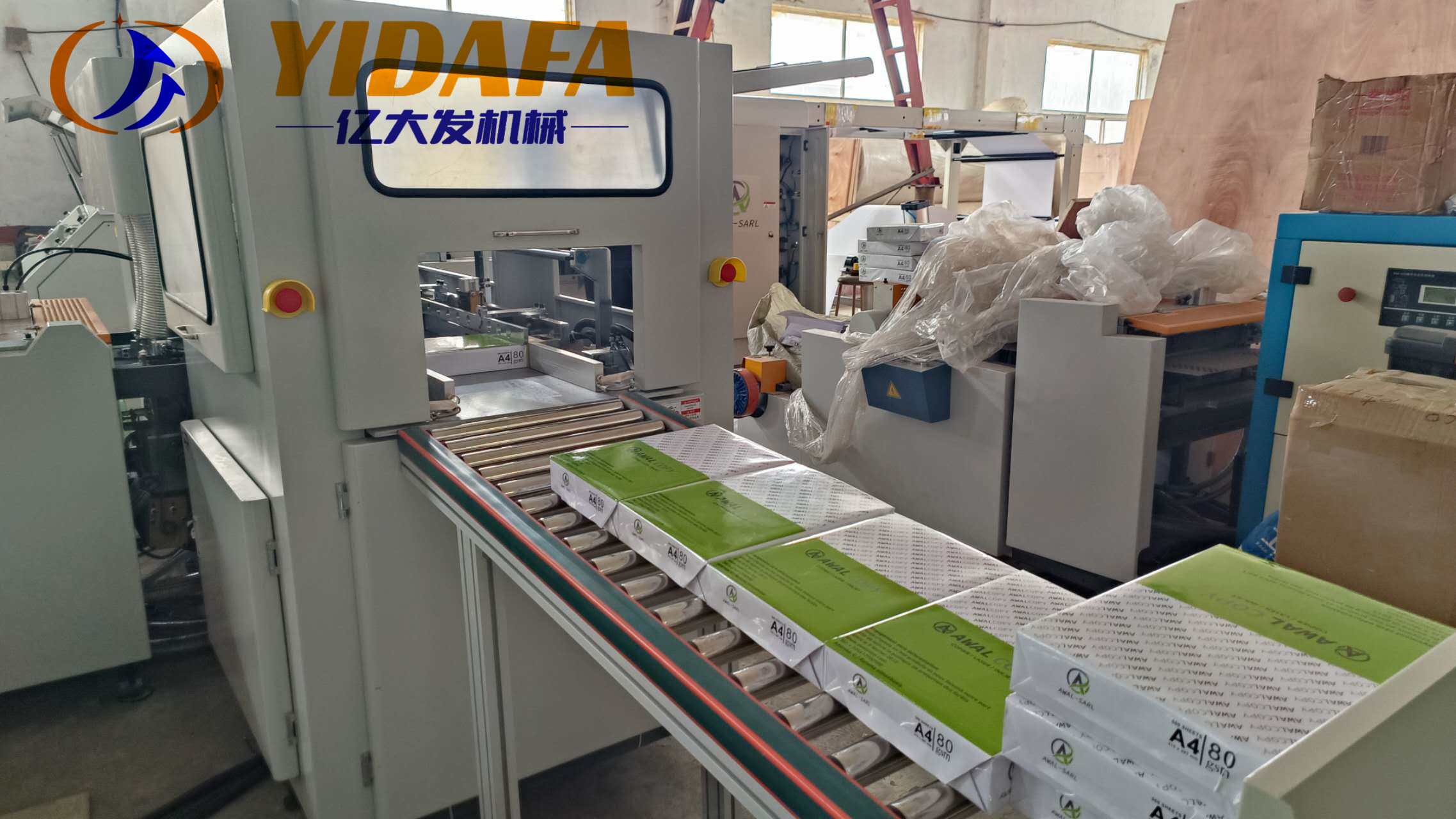

  • 4. A4/A3 packaging machine can be configured to automatically connect packaging and molding.


Speed: 3 ream/min.

Labor:2 workers at least.

Total Power:about 14kw.

Workshop size:200 square meters at least.

a4 paper machine


Model                          1100 A4 paper cutting and packing machine

Max unwinding diameter

φ1100mm

Reference weight of cutting paper

40~500g

Max cut width

1150mm

Cutting length

100-500mm

Cutting speed

3~3.5 reams/min.

Cutting precision

±0.2mm

Voltage:

AC380V/220V x 50HZ

Total power

14 KW

Main function



1) can be two rolls,

2) With paper stacker

3) With round cutter for slitting

4With belt transferring automatic to packaging unit

A4 Paper Cutting Machine

_20230131102243

A4 Paper Cutting Machine

A4 Paper Cutting Machine

A4 Paper Cutting Machine

A4 Paper Cutting Machine
