A4 COPY PAPER PRODUCTION LINE is an arrangement in a factory in which a4 copy paper being manufactured is passed through a set line from big copy paper rolls to a4 size ream package.This line could be semi automatic or full automatic.YIDAFA could supply different kinds of production line for making a4 copy paper ,according to buyer's different requirement.
A4 Paper Roll to A4 Sheet Manufacturing Machine,also named High Speed A3 A4 White Paper Cutting Packaging Machinery Production Line.This machine could make a4 size sheet from big copy paper rolls.Including automatic cutting unit and packing machine function.This machine is widely used in writing printing paper production factory.
A4 COPY PAPER PRODUCTION LINE
1.Definition Of A4 Copy Paper Production Line.
A4 COPY PAPER PRODUCTION LINE is an arrangement in a factory in which a4 copy paper being manufactured is passed through a set line from big copy paper rolls to a4 size ream package.This line could be semi automatic or full automatic.YIDAFA could supply different kinds of production line for making a4 copy paper ,according to buyer's different requirement.
YIDAFA Roll-Feeding full automatic A4/A3 Copy Paper Sheets Cutting Machine and packing making machines production line.This a4 paper manufacturing machine could make a4 size sheet from jumbo writing printing copy paper rolls.Including automated cutting unit and packing machine function.It is widely used in a4 paper manufacturing plant.
China Suppliers Automatic A4 Paper Cutting And Packing Machine
2.Performance and Characteristics Of A4 Copy Paper Production Line
Adopts pneumatic automatic materials loading system with much easy operation and convenience
Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting a4 and vertical cutting a4 copy paper at one time
It adopts servo motor for controlling constant-length cutting a4 copy paper.
It adopts PLC control, contact screen operation
It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise.
This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste
It has the functions of high-precision of cutting, high speed,etc . pneumatic structure combined with computer control be adopted for transmission section ,making it become much more steady operation
It has the function of automatic stacking which is arranged in the production line . Photoelectric auto tracing subtense system
3.Parameter of A4 copy paper production line.
China Suppliers Automatic A4 Paper Cutting And Packing Machine
| Product name | A4 copy paper production line |
| Maxi width of paper rolls | 1100mm |
| Cutting length | 100~500mm |
| Cutting Speed | 1.5 reams per minute,3 reams per minute,6 reams per minute, 7.5 reams per minute. |
| Paper Grade | High-grade copy paper; High-grade office paper, High grade Free Wood paper etc. |
Paper Weight Range | 60-100g/㎡ |
Machine Speed | 10-200times/min |
Cutting Accuracy | ±0.3mm |
Cutting Condition | No variation of the speed, no break, cut all the paper at one time and need the eligible paper |
Cutting specifications | 210*297mm or a3 ,a5 size etc. |

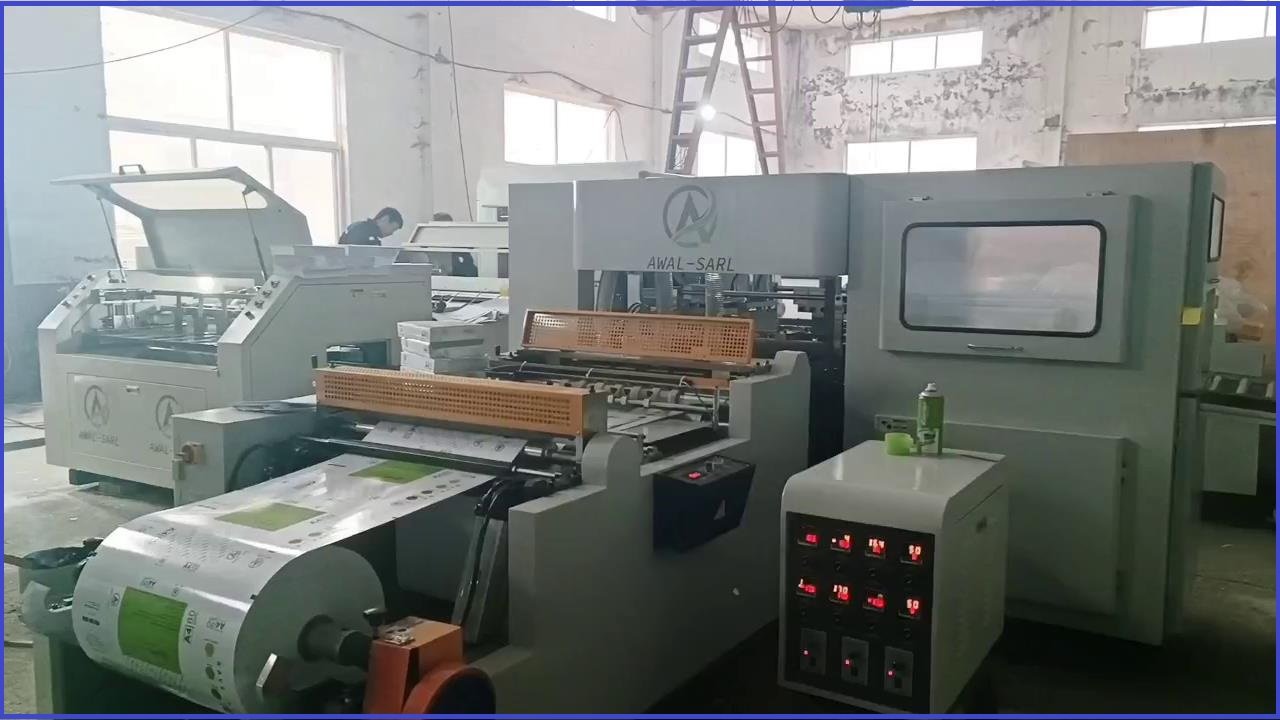

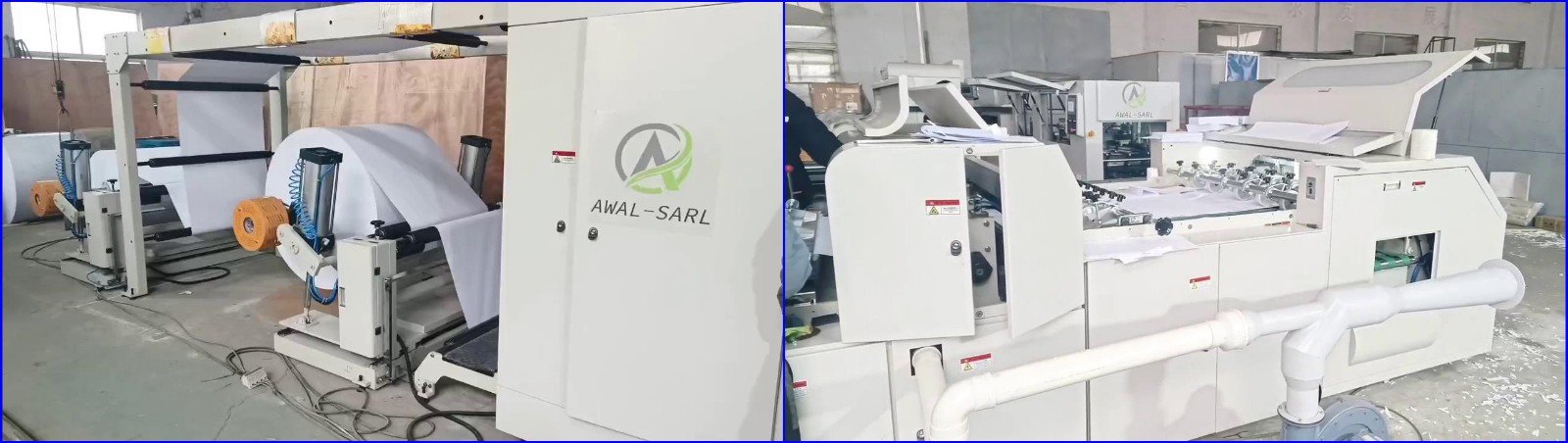

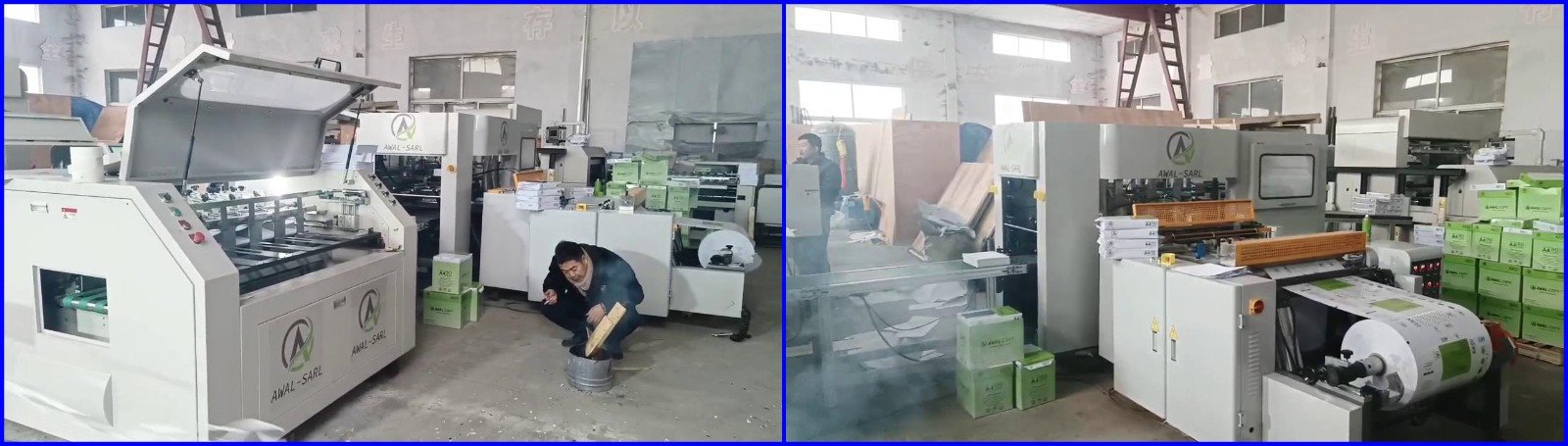

4.Details Picture.
